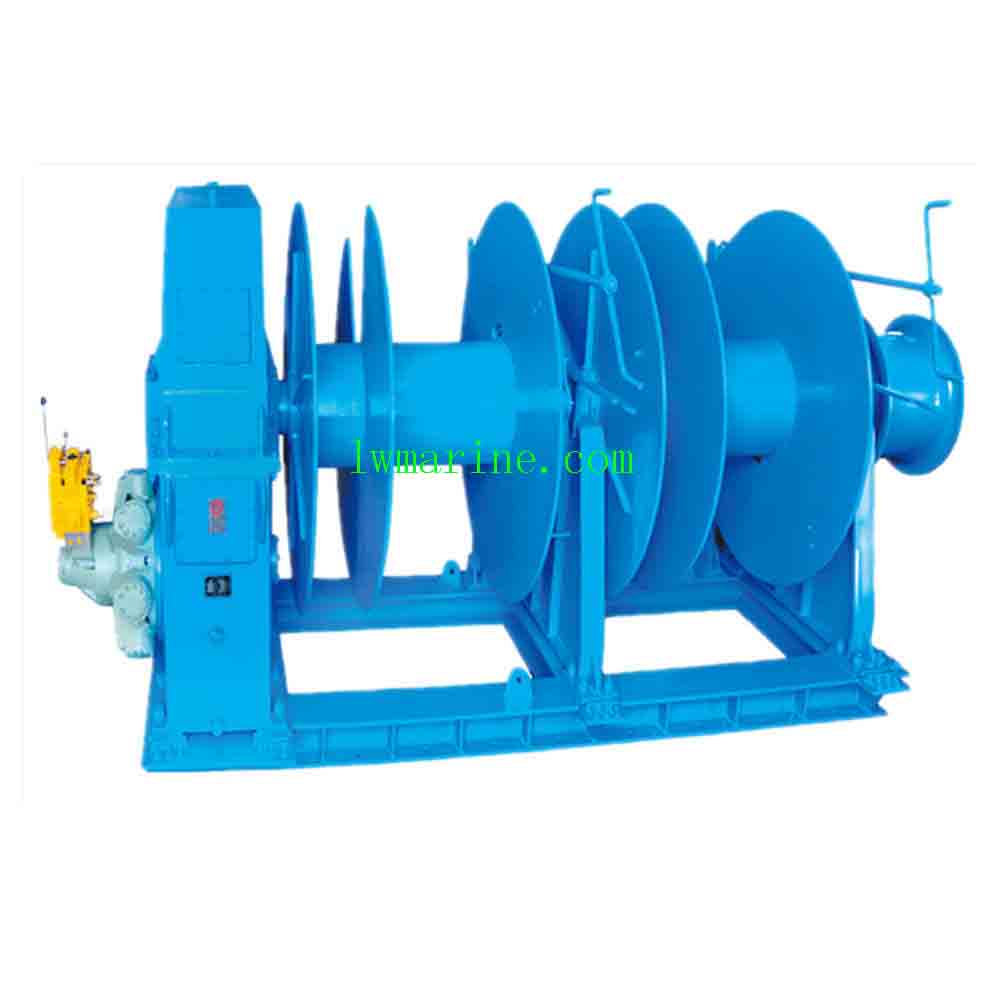

Hydraulic Mooring Winch – Professional-Grade Anchoring System
Integrated Anchor & Mooring Solution
The Hydraulic Mooring Winch combines anchor windlass and mooring winch functionality into a single, high-performance unit. Designed for commercial and naval vessels, this system delivers powerful, precise anchoring control through hydraulic operation, ensuring secure vessel positioning in all sea conditions.
Key Applications
✔ Commercial Shipping – Secure anchoring for cargo vessels and tankers
✔ Offshore Support Vessels – Dynamic positioning assistance
✔ Naval & Coast Guard – Mission-critical anchoring operations
✔ Passenger Ferries – Frequent docking/undocking cycles
Technical Specifications
Core Components
✔ Heavy-Duty Hydraulic Drive – Smooth chain/rope handling
✔ Dual-Function Drum – Anchor chain and mooring line management
✔ Gypsy Wheel Options – Single or double wildcat configurations
✔ Marine-Grade Construction – Corrosion-resistant alloys and coatings
Performance Features
-
Precision Tension Control – Automatic load monitoring (±3% accuracy)
-
High-Speed Retrieval – Up to 15 m/min line speed at full load
-
Fail-Safe Braking – Hydraulic or manual override systems
-
Low Maintenance – Sealed bearings and accessible components
Control Systems
-
Bridge Control Panel – Integrated vessel management
-
Deck Remote – Wireless operation (waterproof, 150m range)
-
Emergency Stop – Instant release capability
Certifications & Compliance
✔ ABS, BV, LR Certified
✔ SOLAS Safety Compliant
✔ IMO Anchoring Equipment Standards
Parameters:
| Supporting Load | Mooring Pull | Working Speed | Mooring Speed | Chain Dia | Working Load | Drum Capacity | Motor Power |
| kN | kN | m/min | m/min | mm | kN | m | kW |
| 51/67/80 | 8 | ≥9 | ≥12 | 14/16/17.5 | 8.3/10.9/13.0 | φ11*100 | 5.5 |
| 95/110/126 | 15 | ≥9 | ≥12 | 19/20.5/22 | 15.3/17.9/20.6 | φ13*120 | 7.5 |
| 149/175 | 20 | ≥9 | ≥12 | 24/26 | 24.5/28.7 | φ15*120 | 11 |
| 202/231 | 30 | ≥9 | ≥12 | 28/30 | 33.3/38.3 | φ18*150 | 15 |
| 261/294/329 | 40 | ≥9 | ≥12 | 32/34/36 | 43.5/49.1/55.1 | φ20.5*150 | 22 |
| 365/402/442 | 50 | ≥9 | ≥12 | 38/40/42 | 61.4/68.0/75.0 | φ20.5*150 | 30 |
| 483/526/570 | 60 | ≥9 | ≥12 | 44/46/48 | 82.3/89.9/97.9 | φ26*200 | 37 |
The description/sizes may be different with goods, please check with us when order.
