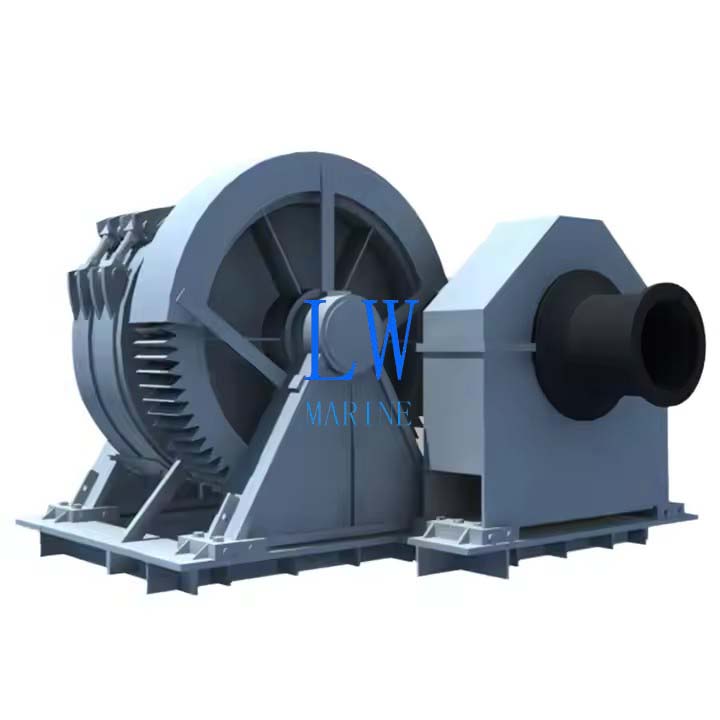

Hydraulic Marine Anchor Windlass
PRODUCT INTRODUCTION
The Hydraulic Marine Anchor Windlass is a high-performance marine deck system designed for professional anchoring operations. Offering superior capabilities compared to manual or electric alternatives, these robust systems deliver exceptional lifting power, precise chain control, and unmatched reliability for demanding maritime applications.
TECHNICAL SPECIFICATIONS
Product Range
-
Hydraulic Single Gypsy Windlass
-
Hydraulic Double Gypsy Windlass
-
Hydraulic Combined Windlass (with integrated warping head)
Primary Applications
-
Cargo vessels & tankers
-
Offshore drilling rigs
-
Large commercial marine craft
Construction Materials
-
Main body: High-grade cast steel
-
Critical components: 316L stainless steel
| Main Technical Data Of Windlass | |||||
| Chain Dia. | WorkingSpeed | WarpingLoad | Working Load | SupportingLoad | MotorPower |
| mm | m/min | KN | KN | KN | kW |
| 14/16/17.5 | ≥9 | 8 | 8.3/10.9/13.0 | 51/67/80 | 5.5 |
| 19/20.5/22 | ≥9 | 10 | 15.3/17.9/20.6 | 95/110/126 | 7.5 |
| 24/26 | ≥9 | 20 | 24.5/28.7 | 149/175 | 11 |
| 28/30 | ≥9 | 30 | 33.3/38.3 | 202/231 | 15 |
| 32/34/36 | ≥9 | 30 | 43.5/49.1/55.1 | 261/294/329 | 22 |
| 38/40/42 | ≥9 | 40 | 61.4/68.0/75.0 | 365/402/442 | 30 |
| 44/46/48 | ≥9 | 50 | 82.3/89.9/97.9 | 483/526/570 | 37 |
| 50/52/54 | ≥9 | 50 | 106.3/114.9/132.9 | 617/664/713 | 45 |
| 56/58/60 | ≥9 | 60 | 133.2/143.0/153.0 | 764/816/870 | 55 |
| 62/64 | ≥9 | 80 | 163.4/174.1 | 925/982 | 55 |
| 66/68 | ≥9 | 100 | 185.1/196.5 | 1040/1098 | 75 |
| 70/73 | ≥9 | 100 | 208.3/226.5 | 1160/1254 | 75 |
| 76/78 | ≥9 | 125 | 245.5/258.6 | 1350/1416 | 90 |
| 81/84 | ≥9 | 140 | 311.7/335.2 | 2171/2320 | 110 |
| 87/90 | ≥9 | 150 | 359.5/384.8 | 2473/2629 | 120 |
| 92/95 | ≥9 | 200 | 446.9/475.0 | 2995/3162 | 130 |
The description/sizes may be different with goods, please check with us when order.
