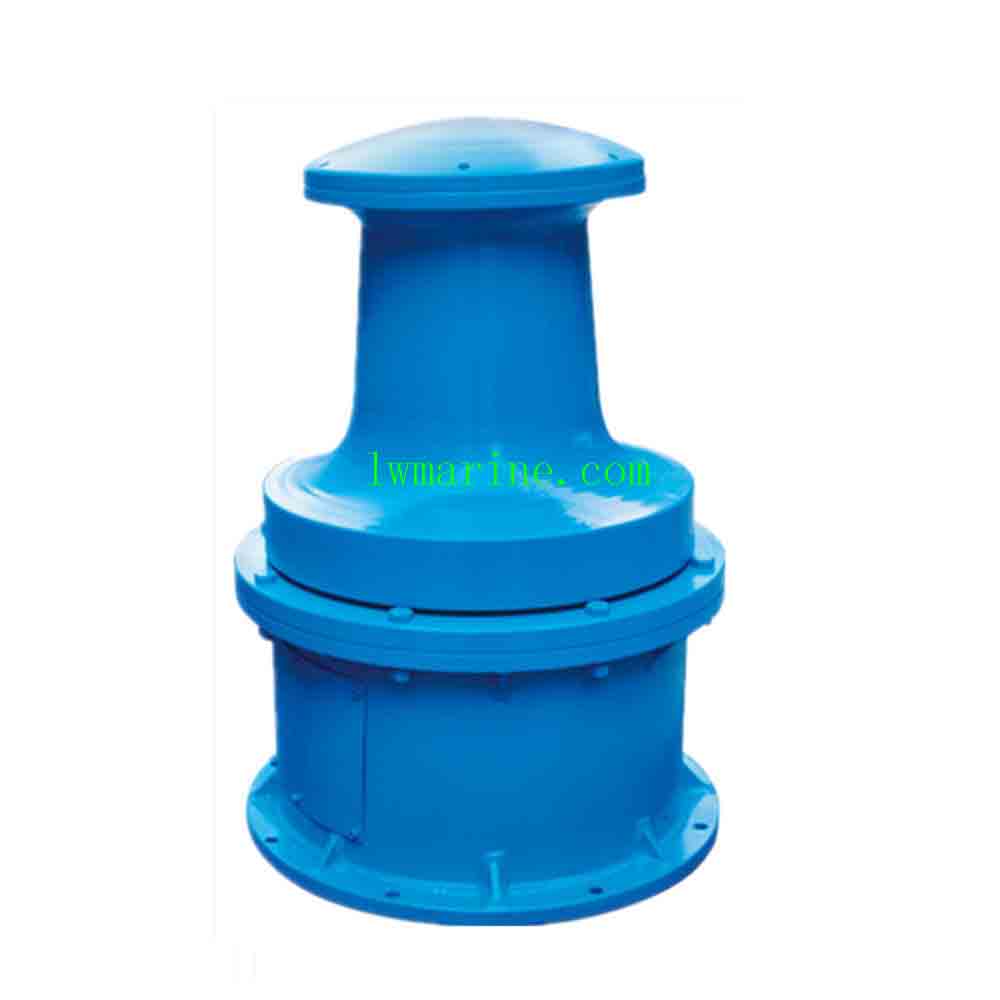

Marine Hydraulic Capstans – Heavy-Duty Marine Deck Machinery
High-Capacity Mooring & Line Handling Solution
The Marine Hydraulic Capstans is a professional-grade deck winching system designed for demanding mooring, anchoring, and towing operations. With 7-ton pulling capacity and 360° operational access, this vertically-oriented capstan delivers exceptional performance while optimizing deck space on commercial vessels.
Technical Specifications
Core Components
✔ 70 kN Hydraulic Drive System
-
7-ton continuous pulling capacity
-
Stepless speed control (0-15 m/min)
-
Bidirectional operation
✔ Vertical Drum Configuration
-
360° omnidirectional line access
-
Below-deck motor installation
-
Compact footprint (40% space savings)
✔ Marine-Grade Construction
-
316L stainless steel contact surfaces
-
Reinforced cast steel frame
-
Triple-layer corrosion protection
Performance Data
| Parameter | Specification |
|---|---|
| Line Capacity | 16-32mm ropes / 14-22mm chains |
| Drum Diameter | 500-700 mm |
| Hydraulic Power | 20-40 kW |
| Operating Temp | -30°C to +65°C |
Certifications & Compliance
✔ LR, RINA, IRS Certified
✔ SOLAS Safety Standards
✔ OCIMF Mooring Guidelines
✔ ISO 9001:2015 Manufacturing
Parameters:
| Rope diameter | Rated mooring loaad | Mooring speed | Motor power |
| mm | KN | m/min | KW |
| 22 | 70 | 12 | 30 |
The description/sizes may be different with goods, please check with us when order.
