China Hydraulic & Electric Mooring Capstan – A Premier Marine Mooring Solution
Overview

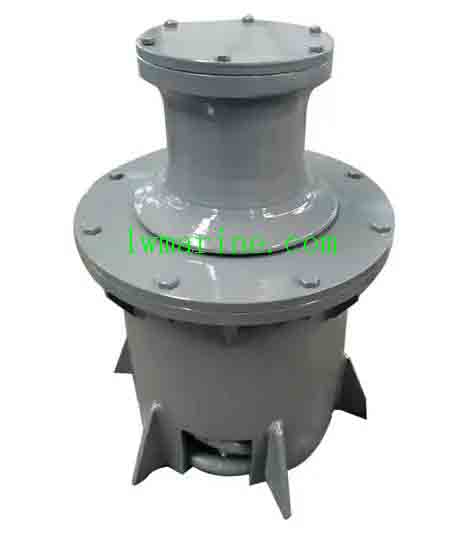

Unveil our top – of – the – line China Hydraulic Mooring Capstan, a powerhouse in the realm of marine mooring equipment. This robust and versatile solution is meticulously crafted to address the wide – ranging and ever – evolving needs of the shipping industry. Whether you’re dealing with small – scale vessels or large – scale cargo ships, our mooring capstans offer exceptional performance across various marine environments.
In addition to our high – quality hydraulic models, we also present electric mooring capstans. These electric variants combine energy efficiency with user – friendly operation, providing an excellent alternative for different marine applications. Both hydraulic and electric mooring capstans are engineered to handle heavy – duty mooring tasks, ensuring secure anchoring and reliable performance even in the most demanding marine conditions.
Compliance and Certification
All our hydraulic mooring capstans are designed and manufactured in strict accordance with international shipbuilding requirements. This stringent compliance guarantees the highest levels of safety and quality in global marine operations. Our capstans have undergone extensive and rigorous testing procedures. They have been approved and awarded certificates by renowned shipping classification societies worldwide, including China Classification Society (CCS), American Bureau of Shipping (ABS), Bureau Veritas (BV), Germanischer Lloyd (GL), Det Norske Veritas (DNV), Lloyd’s Register (LR), Korean Register of Shipping (KR), Nippon Kaiji Kyokai (NK), and Registro Italiano Navale (RINA). This global recognition is a testament to our unwavering commitment to delivering reliable and high – performance marine mooring equipment.
Key Features
- Wide Specification Range for Diverse Marine Mooring Needs: Our mooring capstans are available in a comprehensive range of diameters, from Ø12.5 to Ø114, and working loads from 5kN to 250kN. This extensive selection allows us to cater to a wide variety of marine mooring requirements, whether it’s for small pleasure boats or large commercial vessels.
- Strict International Compliance for Global Marine Safety: By adhering to international shipbuilding standards, our capstans ensure the safety and reliability of marine operations across the globe. This compliance gives ship owners and operators peace of mind, knowing that their mooring equipment meets the highest industry benchmarks.
- Certified Quality from Leading Shipping Classification Societies: The approval and certification from well – known shipping classification societies such as CCS, ABS, BV, and others guarantee top – notch quality and performance. These certifications are a mark of excellence, indicating that our capstans have passed strict quality control measures and are suitable for use in the marine industry.
- Dual Power Options for Flexibility and Adaptability: We offer both hydraulic and electric mooring capstans, providing customers with the flexibility to choose the most suitable option based on their specific application requirements. This adaptability makes our capstans ideal for a wide range of marine vessels and operations.
- Heavy – Duty Performance for Challenging Marine Environments: Designed to withstand the rigors of demanding mooring tasks, our capstans ensure secure anchoring and consistent operation in challenging marine conditions. Whether it’s rough seas, high winds, or heavy loads, our capstans are up to the task.
Technical Specifications (Electric & Hydraulic Mooring Capstan)
| Warping Load (kN) | Warping Speed (m/min) | Wire Dia (mm) | Motor Power (kW) (Electric/Hydraulic) |
|---|---|---|---|
| 5 | ≥18 | Φ11 | 3/1.2 / 5.5 |
| 10 | ≥18 | Φ11 | 4.3/1.7 / 7.5 |
| 15 | ≥18 | Φ13 | 8.5/3.5 / 11 |
| 20 | ≥18 | Φ15 | 11/11/7.5 / 15 |
| 30 | ≥18 | Φ17.5 | 16/16/11 / 18.5 |
| 50 | ≥18 | Φ20.5 | 16/16/11 / 30 |
| 70 | ≥15 | Φ26 | 22/22/11 / 45 |
| 100 | ≥15 | Φ28 | 45/45/30 / 55 |
| 120 | ≥15 | Φ32.5 | 60/60/45 / 75 |
| 150 | ≥15 | Φ36.5 | 60/60/45 / 90 |
| 200 | ≥15 | Φ40 | 75/75/36 / 110 |
| 250 | ≥12 | Φ46 | 75/75/36 / 110 |
55.1KN Hydraulic Anchor Mooring Rope Capstan & 15.3 – 82.3KN Hydraulic Anchor Mooring Rope Capstan
The hydraulic anchor mooring capstan is equipped with high – quality marine wear – resistant anchor chain, a stranded cable drum, a reliable brake belt, a functional clutch, a chain guide roller, an anchor chain cutter, a low – speed heavy – duty hydraulic motor, a plunger oil pump, a marine motor, an electric control box, and a manual ratio valve.
Technical Specifications for Hydraulic Anchor Mooring Rope Capstan
| Chain Dia. (mm) | Working Load (KN) | Working Speed (m/min) | Warping Load (KN) | Warping Speed (m/min) | Wire Dia. (mm) | Motor Power (kW) (Electric/Hydraulic) |
|---|---|---|---|---|---|---|
| 19 | 15.3 | ≥12 | 10 | ≥10 | φ13 | 6/2.5 / 11 |
| 22 | 20.6 | ≥12 | 10 | ≥10 | φ13 | 6/2.5 / 11 |
| 24 | 24.5 | ≥9 | 20 | ≥10 | φ15 | 7.5/7.5/5 / 11 |
| 26 | 28.7 | ≥9 | 20 | ≥10 | φ15 | 7.5/7.5/5 / 11 |
| 28 | 33.3 | ≥9 | 30 | ≥8.5 | φ15 | 16/16/11 / 15 |
| 30 | 38.3 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 / 15 |
| 32 | 43.5 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 / 18.5 |
| 34 | 49.1 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 / 18.5 |
| 36 | 55.1 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 / 18.5 |
| 38 | 62.4 | ≥9 | 150 | ≥8.5 | φ20.5 | 22/22/16 / 30 |
| 40 | 68 | ≥9 | 150 | ≥8.5 | φ20.5 | 22/22/16 / 30 |
| 42 | 75 | ≥9 | 50 | ≥8 | φ20.5 | 22/22/16 / 30 |
| 44 | 82.3 | ≥9 | 50 | ≥8 | φ20.5 | 30/30/22 / 37 |
FAQs
Q1: How do I choose between a hydraulic and an electric mooring capstan?
A1: The choice between a hydraulic and an electric mooring capstan depends on several factors. Hydraulic capstans are generally more suitable for applications where high power and heavy – duty performance are required, such as on large commercial vessels. They can handle larger loads and are more resistant to harsh marine conditions. Electric capstans, on the other hand, are more energy – efficient and easier to operate. They are a good choice for smaller vessels or applications where simplicity and cost – effectiveness are important. Our technical team can assess your specific needs and help you make the right decision.
Q2: What maintenance is required for the mooring capstans?
A2: Regular maintenance is crucial to ensure the long – term performance and reliability of our mooring capstans. For hydraulic capstans, this includes checking the hydraulic fluid level, inspecting the hoses and fittings for leaks, and lubricating the moving parts. For electric capstans, you should check the electrical connections, clean the motor, and inspect the brakes. Additionally, all capstans should be inspected for wear and tear on a regular basis, and any damaged parts should be replaced promptly. Our user manual provides detailed maintenance instructions for each type of capstan.
Q4: How long is the warranty period for the mooring capstans?
A4: We offer a comprehensive warranty period for our mooring capstans. The exact warranty period may vary depending on the model and type of capstan, but typically it ranges from 12 to 24 months. During the warranty period, we will repair or replace any defective parts free of charge, provided that the capstan has been used and maintained in accordance with our user manual. Our customer service team is always available to assist you with any warranty – related issues.
Q5: Are the mooring capstans suitable for use in extreme marine conditions?
A5: Yes, our mooring capstans are designed to withstand extreme marine conditions. They are made from high – quality materials that are resistant to corrosion, saltwater, and harsh weather. The hydraulic and electric components are also protected to ensure reliable operation in challenging environments. Additionally, our capstans have undergone rigorous testing to verify their performance in extreme conditions, giving you confidence in their ability to handle any marine situation.
Please Note: The description might be incorrect, please contact us for confirmation.
