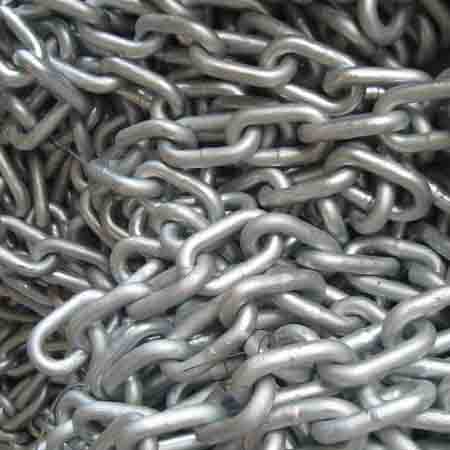

Hot Dip Galvanized Anchor Chain for Marine Applications
Our hot dip galvanized anchor chain is meticulously engineered to deliver exceptional corrosion resistance, making it the perfect choice for vessels operating in harsh saltwater environments. Crafted from high-strength CM490/CM690 steel bars, these marine-grade anchor chains offer a harmonious blend of reliability, durability, and cost-effective performance, ensuring your vessel remains securely anchored in any conditions.
Key Features & Benefits:
- Superior Corrosion Resistance: The zinc coating provides robust, long-term protection against rust and seawater degradation, extending the lifespan of your anchor chain significantly.
- High Tensile Strength: Available in U2 (Grade 2) and U3 (Grade 3) options, our anchor chains cater to a wide range of load requirements, ensuring your vessel stays anchored safely under varying conditions.
- Certified Quality: Compliant with international standards including ABS, BV, CCS, DNV GL, KR, LR, NK, RINA, and RS, our anchor chains guarantee top-tier quality and performance.
- Customizable Options: Choose from multiple diameters and surface finishes, including hot dip galvanized (standard) and black bituminous paint (optional), to suit your specific needs.
- Versatile Applications: Ideal for commercial vessels, fishing boats, yachts, and offshore platforms, our anchor chains are designed to withstand the rigors of marine environments.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Material | CM490 (U2) / CM690 (U3) Steel |
| Diameter Range | 12.5mm – 162mm |
| Surface Finish | Hot Dip Galvanized (Standard) / Black Bituminous Paint (Optional) |
| Standard Length | 27.5m per shackle (25m available on request) |
| Shackle Type | Kenter or D-Type (customizable) |
| Certifications | ABS, BV, CCS, DNV·GL, KR, LR, NK, RINA, RS |
Detailed Load Capacity & Weight Chart:
| Nominal Diameter (mm) | U2 Proof Load (kN) | U3 Proof Load (kN) | U2 Breaking Load (kN) | U3 Breaking Load (kN) | Approx. Mass (kg/27.5m) |
|---|---|---|---|---|---|
| 12.5 | 66 | 92 | 92 | 132 | 98 |
| 14 | 82 | 116 | 116 | 165 | 122 |
| … | … | … | … | … | … |
| 162 | 7990 | 11170 | 11170 | 15970 | 16210 |
(Note: The full table with all diameters is included in the original content for reference.)
Additional Information:
- Marine Anchor Chain Compliance: Our anchor chains are manufactured in accordance with class rules and ISO standards, ensuring they meet the highest safety and quality requirements for marine use.
- Accessories Included: Each chain comes with shackles, swivels, and swivel shackles, all designed to match the proof load and breaking load of the anchor chain for seamless integration.
- Precision Engineering: Studs are centrally located in the links and at right angles to the sides, with tolerances allowed for accessories to ensure optimal performance and ease of use.
FAQs:
Q1: What makes hot dip galvanized anchor chains suitable for saltwater environments?
A1: Hot dip galvanized anchor chains are coated with a layer of zinc, which provides excellent corrosion resistance against rust and seawater degradation, making them ideal for prolonged use in saltwater conditions.
Q2: Can I customize the length and diameter of the anchor chain?
A2: Yes, our anchor chains are available in multiple diameters and standard lengths of 27.5m per shackle. We also offer custom lengths upon request to meet your specific needs.
Q3: Are your anchor chains compliant with international standards?
A3: Absolutely. Our anchor chains are compliant with a wide range of international standards, including ABS, BV, CCS, DNV GL, KR, LR, NK, RINA, and RS, ensuring top-tier quality and performance.
Q4: What are the load capacities of your anchor chains?
A4: Our anchor chains are available in U2 (Grade 2) and U3 (Grade 3) options, with varying proof loads and breaking loads depending on the diameter. Please refer to our detailed load capacity chart for specific information.
Q5: Do you offer any surface finish options other than hot dip galvanized?
A5: Yes, in addition to our standard hot dip galvanized finish, we also offer black bituminous paint as an optional surface finish to suit your preferences and specific applications.
The description/sizes may be different with goods, please check with us when order.
