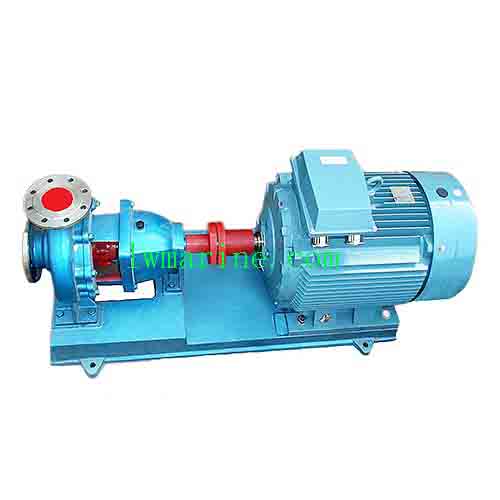

CWL Series Horizontal Centrifugal Pumps for Marine
The CWL Series Horizontal Centrifugal Pumps for Marine are engineered to offer unwavering and versatile performance across a wide spectrum of water – handling tasks on board marine vessels and within industrial settings. These pumps are specifically designed to operate effectively with both seawater and freshwater, making them an ideal choice for a variety of crucial systems on ships. From ensuring a steady domestic water supply to powering firefighting systems, cooling circuits, and sanitation services, these pumps deliver efficient and reliable functionality. Their flexible design allows for the use of either mechanical seals or traditional packing seals, and the material selection can be customized to meet the unique operational demands of different applications.
Key Features and Their Advantages
Dual – Fluid Handling Capability
These pumps excel in handling both seawater and freshwater with equal proficiency. This dual – purpose design makes them highly adaptable for marine vessels that may encounter different water sources during their voyages, eliminating the need for multiple pumps for different water types.
Diverse Seal Configurations
The pumps can be configured with either mechanical seals or traditional packing seals. This gives users the flexibility to choose the most suitable sealing option based on factors such as the nature of the fluid being pumped, the operating pressure, and maintenance requirements. Mechanical seals offer excellent leak – prevention capabilities, while packing seals may be more cost – effective in certain low – pressure applications.
Customizable Material Selection
With the option to select custom materials, these pumps can be tailored to specific application requirements. Whether it’s dealing with corrosive seawater, high – temperature fluids, or abrasive substances, the right material choice ensures optimal performance and longevity of the pump.
Horizontal Layout for Easy Maintenance
The horizontal configuration of these pumps simplifies the installation process and provides easy access for maintenance tasks. This reduces downtime and maintenance costs, as technicians can quickly inspect, repair, or replace components without having to disassemble the entire pump system.
Marine – Grade Durability
Constructed using corrosion – resistant materials, these pumps are built to withstand the harsh marine environment. The use of high – quality materials ensures that the pumps remain functional and reliable over an extended period, even when exposed to saltwater, humidity, and other corrosive elements.
Wide Range of Applications
These pumps are suitable for a multitude of services on marine vessels, including domestic water supply, firefighting systems, cooling circuits for engines and other equipment, and sanitation services. Their versatility makes them an essential component for maintaining the smooth operation of various systems on board.
Model Identification Guide
Take the model 32CWL – 4 as an example:
- 32: Represents the inlet diameter of the pump, which is 32mm. This measurement is crucial for ensuring proper connection and fluid flow into the pump.
- CWL: Signifies that it is a marine horizontal centrifugal pump, clearly indicating its type and intended application.
- 4: Is the specific speed number divided by 10. This parameter helps in understanding the pump’s performance characteristics and selecting the right model for a particular application.
Performance Specifications under 50Hz Operation
| Model | Capacity (m³/h) | Head (m) | Power (kW) | Efficiency (%) | Inlet/Outlet (mm) |
|---|---|---|---|---|---|
| 32CWL – 4 | 4 | 21 | 1.1 | 53 | 32/25 |
| 40CWL – 4 | 8 | 30 | 2.2 | 50 | 40/32 |
| 50CWL – 4 | 12 | 42 | 4 | 50 | 50/40 |
| 65CWL – 8 | 35 | 30 | 5.5 | 70 | 65/50 |
| 80CWL – 11 | 60 | 30 | 7.5 | 75 | 80/65 |
| 100CWL – 14 | 100 | 30 | 15 | 78 | 100/80 |
| 150CWL – 18 | 160 | 13 | 11 | 81 | 150/125 |
| 200CWL – 12 | 300 | 30 | 37 | 81 | 200/150 |
(Complete performance data for both 50Hz and 60Hz operations is available for all models, enabling users to select the most appropriate pump based on their specific power supply requirements.)
Technical Specifications
Motor Compatibility
These pumps are compatible with standard Y – series marine motors, ensuring seamless integration with existing marine power systems. This compatibility simplifies the installation process and reduces the need for additional motor modifications.
Seal Options
As mentioned earlier, users can choose between mechanical seals and packing seals, depending on their specific needs. This flexibility allows for optimization of the pump’s performance and maintenance requirements.
Pressure and Flow Ranges
The pumps have a pressure range of up to 85m head capacity, enabling them to handle high – pressure applications such as firefighting systems. The flow range spans from 4 – 400 m³/h, making them suitable for both small – scale domestic water supply and large – scale cooling or sanitation systems on marine vessels.
Connection Types
Flanged connections are the standard for these pumps, providing a secure and reliable connection between the pump and the piping system. This type of connection is easy to install and maintain, reducing the risk of leaks and ensuring efficient fluid transfer.
Note: The description might be incorrect, please contact us for confirmation.
