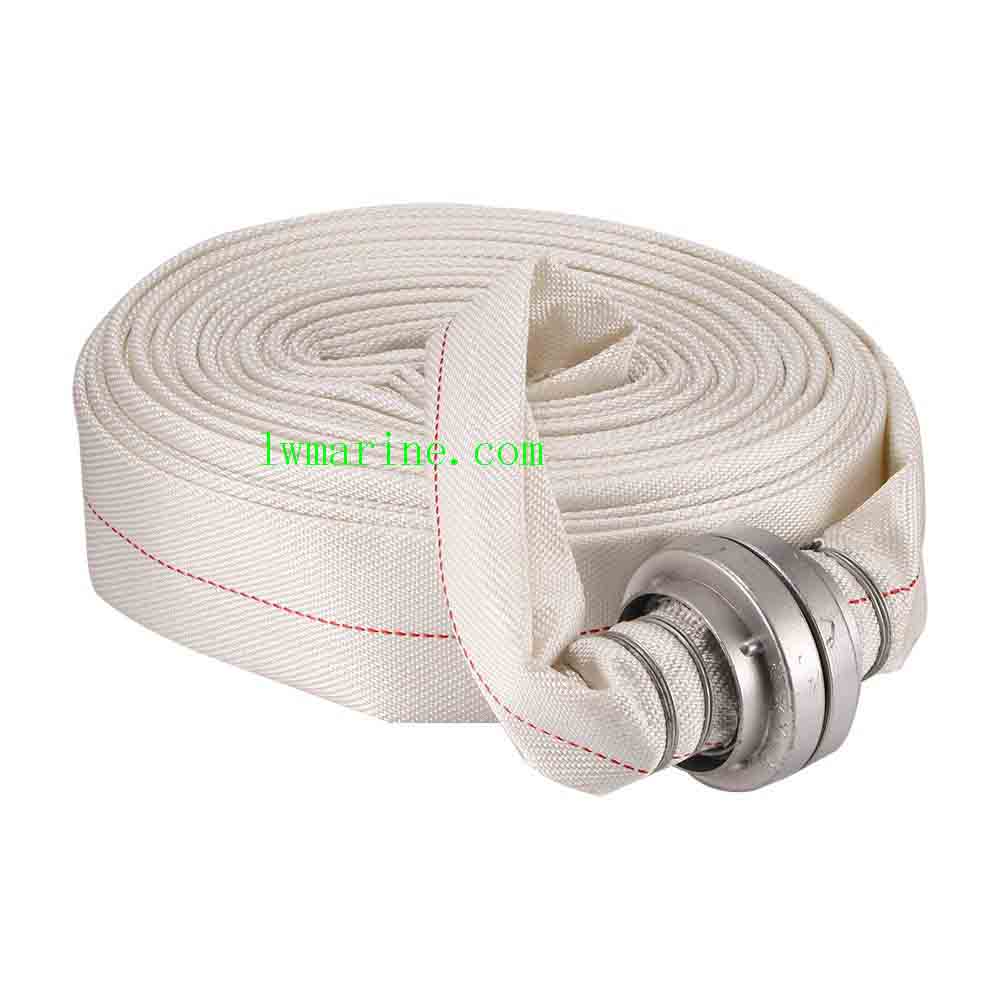

High-Pressure Fire Hose & Coupling | Customizable Industrial Firefighting Hoses
Description:
Our high pressure fire hose and coupling are engineered for reliable transportation of high pressure water, foam, oil, and other fire-retardant liquids. Constructed with advanced polymer materials for superior performance, these hoses feature a durable design with metal fittings on each end for secure connections to additional hoses or nozzles, enabling extended reach and increased injection pressure.
We offer a wide range of hoses tailored to meet diverse operational requirements. Our products are available in multiple working pressure levels (0.8MPa to 2.0MPa+), various diameters (50mm to 150mm+), and two weaving methods (plain and twill weave). While the standard hose length is 20 meters, we provide fully customizable options to meet your specific technical needs.
Standards & Certifications:
Our hoses comply with international safety and performance standards, including:
-
SOLAS II-2/10
-
2000 HSC Code, Chapter 7
-
EN 14540:2004 (including A1:2007)
-
GB 6264-2011
Certifications:
-
CCS (China Classification Society)
-
EC (European Certification)
Customization Options:
We specialize in providing tailored hose solutions based on your specific requirements, including:
-
Working pressure (MPa/PSI)
-
Diameter and length
-
Jacket type (Single, Double, or Durable Jacket)
-
Temperature range
-
Color coding
-
Wearing coefficient and adhesion strength
Product Specifications:
| Structure | Working Pressure | Color Options | Diameter (Inch/mm) | Length (Meters/Feet) |
|---|---|---|---|---|
| Single Jacket | 0.8 MPa / 120 PSI | White | 1″ / 25 mm | 15 m / 50 FT |
| Double Jacket | 1.0 MPa / 150 PSI | Red | 1-1/2″ / 38 mm | 20 m / 66 FT |
| Durable Jacket | 1.2 MPa / 200 PSI | Yellow | 1-3/4″ / 45 mm | 25 m / 100 FT |
| 1.3 MPa / 250 PSI | Orange | 2″ / 52 mm | 30 m / 150 FT | |
| 1.4 MPa / 300 PSI | Green | 2-1/2″ / 65 mm | 40 m / 200 FT | |
| 1.5 MPa / 400 PSI | Blue | 3″ / 75 mm | 45 m / Custom | |
| 1.6 MPa / Custom | Black | 4″ / 100 mm | 50 m / Custom | |
| 1.7 MPa / Custom | Custom | 5″ / 125 mm | 100 m / Custom | |
| 2.0 MPa+ / Custom | 6″ / 150 mm+ | Custom Lengths |
The description/sizes may be different with goods, please check with us when order.
