CB/T 3191-1992 High Pressure Ball Valve | Marine-Grade Aluminum Bronze Ball Valve for High-Pressure Ship Systems
Product Overview

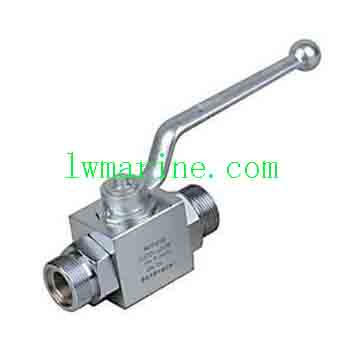

The CB/T 3191-1992 High Pressure Ball Valve is a precision-engineered marine valve designed for extreme pressure applications in ship repair and maintenance. Manufactured from durable aluminum bronze with pressure ratings up to 32 MPa, this high-pressure ball valve ensures reliable performance in critical marine systems. Available in Type A and Type B configurations with sizes from DN10 to DN32, it provides superior shut-off capability and corrosion resistance for demanding high-pressure environments.
Key Features & Benefits
-
Extreme Pressure Capability: Rated for pressures up to 32 MPa for demanding marine applications
-
Premium Aluminum Bronze Construction: Excellent corrosion resistance and durability in seawater environments
-
Dual Configuration Options: Type A (6.4/10.0 MPa) and Type B (16.0/20.0 MPa) for various pressure requirements
-
Threaded Connection Design: Ensures secure installation and leak-free operation in high-pressure systems
-
Compact Design: Ideal for space-constrained marine installations and repair applications
-
Custom Material Options: Special materials available upon request to meet specific needs
-
Sample Availability: Prototype samples provided for testing and validation
-
Flexible Customization: Tailored solutions based on specific business requirements
-
Standard Compliance: Meets CB/T 3191-1992 Chinese marine standard requirements
Material Specification
-
Body, Attachment, Spheroid & Stem: Aluminum Bronze (Standard)
-
Optional Materials: Custom materials available upon request
Technical Specifications
-
Standard: CB/T 3191-1992
-
Nominal Pressure: 6.4, 10, 16, 20, 32 MPa
-
Nominal Diameter: DN10-DN32
-
Connection Type: Threaded Joint
-
Valve Type: High Pressure Ball Valve
Dimensions – Type A (6.4/10.0 MPa) (mm)
| DN | L | L1 | L2 | H | D | Thread | f | D1 | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 88 | 37 | 100 | 52 | M27×1.5 | 19 | 3 | 24.8 | 14 |
| 15 | 115 | 50 | 125 | 56 | M36×2 | 26 | 4 | 33.0 | 22 |
| 20 | 138 | 61 | 130 | 60 | M39×2 | 27 | – | 36.0 | 25 |
| 25 | 148 | 63 | 145 | 64 | M48×2 | 30 | – | 45.0 | 32 |
| 32 | 168 | 73 | 160 | 75 | M56×2 | 32 | – | 53.0 | 38 |
Dimensions – Type B (16.0/20.0 MPa) (mm)
| DN | L | L1 | L2 | H | D | Thread | f |
|---|---|---|---|---|---|---|---|
| 10 | 86 | 36 | 100 | 52 | M27×1.5 | 18 | 3 |
| 15 | 105 | 45 | 120 | 56 | M36×2 | 21 | 4 |
| 20 | 128 | 56 | 130 | 60 | M39×2 | 22 | – |
| 25 | 138 | 58 | 145 | 64 | M48×2 | 25 | – |
| 32 | 158 | 68 | 160 | 75 | M56×2 | 27 | – |
Applications
-
High-pressure hydraulic systems
-
Marine fuel injection systems
-
Compressed air and gas services
-
Steering gear and control systems
-
Deck machinery hydraulic circuits
-
Emergency shutdown systems
-
Ship repair and maintenance operations
-
Offshore platform high-pressure applications
The description/sizes may be different with goods, please check with us when order.
