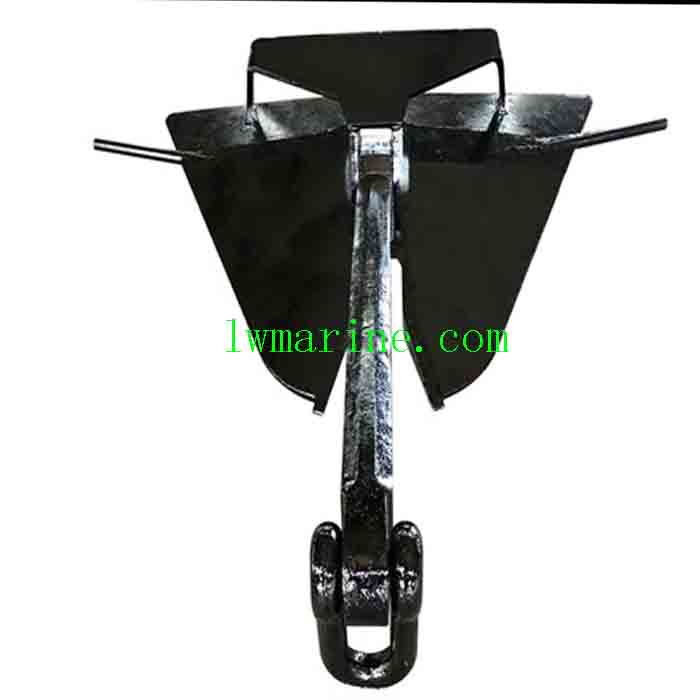

Super High Holding Power MK3 Anchor
Engineered for High Holding Power MK3 Anchor, the HHP MK3 Anchor delivers over four times the grip of conventional stockless anchors of equal weight—providing unmatched security for large ships in challenging conditions.
Key Advantages
✔ Unmatched Holding Capacity – 4X stronger than standard stockless anchors
✔ Optimized for Large Vessels – Ensures stability during port maneuvers & tight turns
✔ Harsh Weather Performance – Maintains secure positioning in rough seas & strong currents
✔ Space-Efficient Design – Compact yet exceptionally strong
Technical Specifications
-
Type: SHHP (Super High Holding Power) Anchor
-
Material: High-grade cast steel (customizable)
-
Weight Range: Customizable for vessel requirements
-
Finish: Hot-dip galvanized or customized coatings
-
Certifications: Complies with major marine standards
Parameters:
| D | E | K | S | A | B | C | Nominal Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 2023 | 737 | 1010 | 60 | 2429 | 2654 | 1559 | 1000 |
| 2316 | 843 | 1156 | 65 | 2774 | 3038 | 1785 | 1500 |
| 2918 | 1063 | 1456 | 80 | 3493 | 3828 | 2249 | 3000 |
| 3460 | 1260 | 1727 | 80 | 4120 | 4538 | 2667 | 5000 |
| 3871 | 1409 | 1932 | 90 | 4602 | 5077 | 2983 | 7000 |
| 4209 | 1533 | 2100 | 100 | 5012 | 5521 | 3244 | 9000 |
| 4632 | 1687 | 2312 | 110 | 5516 | 6076 | 3570 | 12000 |
| 4990 | 1817 | 2490 | 120 | 5942 | 6545 | 3846 | 15000 |
| 5324 | 2048 | 2674 | 160 | 6372 | 6986 | 4100 | 20000 |
| 6094 | 2345 | 3061 | 180 | 7289 | 7997 | 4694 | 30000 |
Note: The description might be incorrect, please contact us for confirmation.
