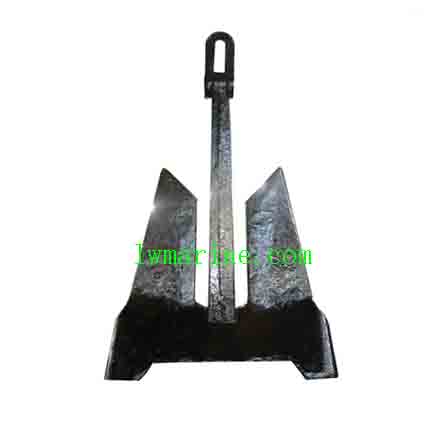

High Holding Power Anchor

High Holding Power Anchor

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

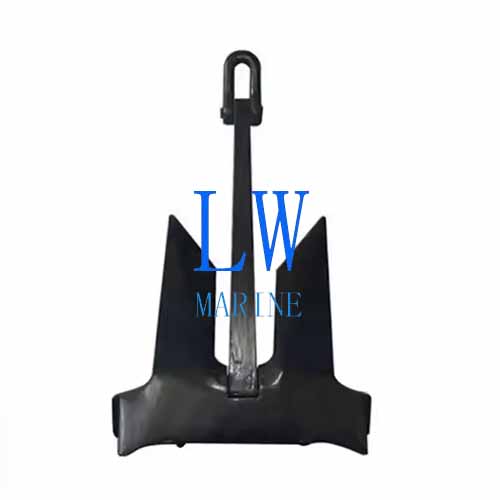

AC-14 High Holding Power Anchor
The AC-14 Anchor is a high-performance anchor designed based on the conventional stockless anchor. It delivers exceptional stability and rapid seabed penetration across various seabed conditions, including mud, soil, sand, and sandstone. With a holding-power-to-weight ratio of up to 14, it ensures superior reliability for marine applications.

All AC-14 Anchors come with major classification certifications, including LR, ABS, BV, GL, DNV, KR, NK, IRS, and CCS.

Applications:

  • Marine & Shipping Industry

  • Agricultural & Offshore Use

AC-14 Anchor Specifications:

  • Material: High-quality cast steel

  • Weight Range: 75 kg to 30,000 kg

  • Surface Finish: Black painted for corrosion resistance

  • Certifications: LR, ABS, BV, GL, DNV, KR, NK, IRS, CCS

High Holding Power Anchor

Weight/Mass Size(mm)
(KG) A C B E D F G J
56KGS 612 376 298 109 555 170 115 24
100KGS 745 458 364 130 675 200 130 28
180KGS 909 558 442 162 822 252 160 36
300KGS 1075 660 524 194 975 298 192 45
428KGS 1213 745 590 215 1098 336 215 48
675KGS 1410 868 690 250 1278 390 255 60
750KGS 1450 878 700 256 1315 396 255 60
910KGS 1560 957 760 273 1410 430 255 60
970KGS 1592 978 775 284 1445 440 280 62
1080KGS 1650 1014 805 294 1495 455 280 62
1305KGS 1760 1082 858 313 1595 485 310 68
1440KGS 1818 1118 885 324 1645 505 310 68
1710KGS 1925 1184 940 343 1745 532 340 74
1845KGS 1975 1215 965 347 1785 546 340 74
2100KGS 2065 1268 1005 354 1865 570 380 82
2475KGS 2175 1340 1062 385 1970 605 385 82
2835KGS 2265 1393 1105 399 2055 625 410 90
3550KGS 2455 1508 198 438 2225 680 415 100
3940KGS 2540 1562 1240 453 2300 705 450 100
4500KGS 2655 1632 1295 473 2405 735 450 100
4840KGS 2720 1670 1330 490 2465 755 480 110
4610KGS 2858 1758 1396 509 2590 790 500 110
6000KGS 2922 1796 1426 515 2646 810 500 110
6900KGS 3062 1884 1496 545 2775 848 540 117
7800KGS 3190 1962 1558 569 2890 884 600 130
8300KGS 3256 2002 1590 574 2950 902 600 130
9300KGS 3382 2080 1652 606 3064 936 630 135
9900KGS 3452 2124 1686 616 3128 956 640 140
10575KGS 3523 2166 1720 628 3192 976 660 145
11100KGS 3589 2166 1720 628 3192 976 660 145
11700KGS 3650 2245 1782 648 3308 1010 680 150
12300KGS 3683 2260 1794 655 3330 1018 700 155
12900KGS 3772 2320 1842 670 3418 1044 700 155
13500KGS 3830 2355 1870 682 3470 1060 730 160
14100KGS 3885 2389 1896 689 3520 1076 730 160
14700KGS 3940 2423 1924 700 3570 1090 730 160
15400KGS 4002 2461 1954 710 3626 1108 730 160
16100KGS 4062 2498 1982 721 3680 1125 770 170
16900KGS 4128 2538 2016 721 3740 1144 700 170
17800KGS 4200 2583 2050 725 3806 1162 800 180
18800KGS 4277 2630 2088 729 3875 1185 800 180
20000KGS 4350 2694 2101 729 3945 1185 820 199
25000KGS 5046 3125 2437 846 4577 1375 848 230

Specifications may vary from actual products. Kindly confirm requirements prior to purchase.
