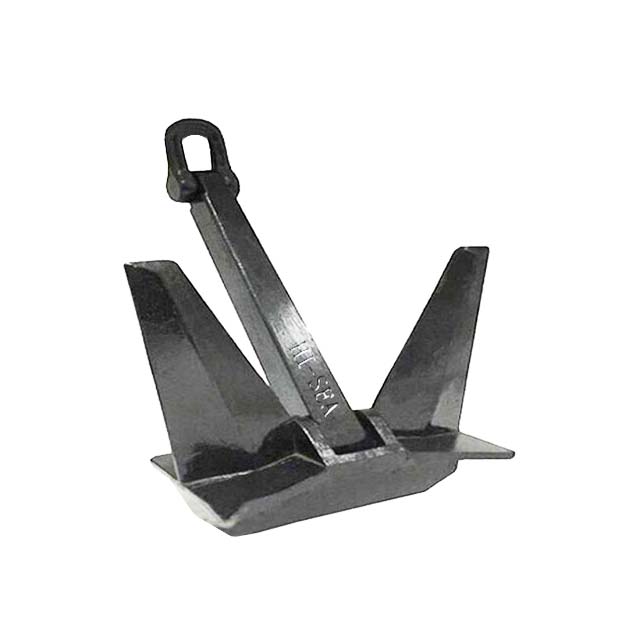

N-Type HHP Fully Balanced Anchor
Product Description
The N Type HHP Fully Balanced Anchor represents a premium stockless anchor design that delivers exceptional holding power through its innovative fully-balanced construction. Engineered for optimal performance across all marine conditions, this anchor combines superior stability with maximum seabed penetration capability.
Technical Specifications
Core Features:
-
Type: Fully balanced high holding power (HHP) stockless anchor
-
Materials:
-
ZG230-450H (primary structural components)
-
Q345C (high-strength reinforcement)
-
-
Weight Range: 60kg – 28,875kg (extended size availability)
-
Surface Finishes:
-
Standard black bitumen paint
-
Advanced anti-rusting coating
-
Customized surface treatments available
-
Packaging Options:
-
Protective carton
-
Heavy-duty plywood case
-
Secure plywood pallet
-
Nude packing for special requirements
Certifications:
CCS | ABS | BV | LR | NK | RINA | etc.
Key Advantages
Perfect Balance Technology
-
Optimized weight distribution for instant seabed penetration
-
Maintains ideal attack angle in all conditions
Superior Holding Power
-
Outperforms standard anchors in holding capacity
-
Verified by major classification societies
Material Excellence
-
Dual-material construction (ZG230-450H + Q345C)
-
Enhanced structural integrity
Customization Ready
-
Multiple finish options
-
Flexible packaging solutions
Universal Compliance
-
Meets all international marine standards
| D | E | F | A | B | C | Nominal Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 364 | 157 | 270 | 590 | 55 | 470 | 60 |
| 410 | 176 | 295 | 664 | 605 | 515 | 80 |
| 440 | 190 | 320 | 712 | 655 | 555 | 100 |
| 516 | 223 | 370 | 835 | 765 | 650 | 160 |
| 546 | 236 | 400 | 885 | 825 | 700 | 200 |
| 622 | 269 | 450 | 1008 | 925 | 780 | 280 |
| 677 | 292 | 490 | 1096 | 1005 | 855 | 360 |
| 728 | 314 | 535 | 1186 | 1105 | 940 | 480 |
| 802 | 347 | 580 | 1300 | 1190 | 1010 | 600 |
| 870 | 375 | 610 | 1410 | 1290 | 1096 | 765 |
| 942 | 404 | 660 | 1526 | 1395 | 1185 | 1000 |
| 975 | 421 | 685 | 1580 | 1446 | 1230 | 1080 |
| 1010 | 436 | 708 | 1636 | 1485 | 1270 | 1195 |
| 1037 | 464 | 754 | 1680 | 1541 | 1308 | 1305 |
| 1073 | 464 | 754 | 1738 | 1592 | 1352 | 1440 |
| 1092 | 472 | 777 | 1769 | 1640 | 1386 | 1575 |
| 1137 | 491 | 798 | 1840 | 1686 | 1455 | 1710 |
| 1168 | 504 | 819 | 1890 | 1729 | 1469 | 1845 |
| 1195 | 516 | 836 | 1935 | 1770 | 1504 | 1980 |
| 1226 | 530 | 860 | 1986 | 1816 | 1543 | 2140 |
| 1254 | 540 | 880 | 2030 | 1860 | 1580 | 2295 |
| 1322 | 566 | 926 | 2140 | 1954 | 1684 | 2655 |
| 1351 | 580 | 945 | 2188 | 1996 | 1700 | 2835 |
| 1382 | 592 | 968 | 2238 | 2042 | 1736 | 3000 |
| 1412 | 605 | 988 | 2287 | 2086 | 1773 | 3240 |
| 1508 | 646 | 1055 | 2442 | 2226 | 1892 | 3940 |
| 1576 | 675 | 1103 | 2553 | 2328 | 1976 | 4500 |
| 1651 | 708 | 1155 | 2675 | 2439 | 2072 | 5175 |
| 1686 | 722 | 1180 | 2730 | 2491 | 2116 | 5515 |
| 1720 | 737 | 1204 | 2786 | 2541 | 2159 | 5850 |
| 1750 | 756 | 1229 | 2838 | 2594 | 2204 | 6225 |
| 1780 | 768 | 1248 | 2880 | 2635 | 2239 | 6525 |
| 1820 | 786 | 1276 | 2948 | 2695 | 2290 | 6975 |
| 1858 | 802 | 1303 | 3010 | 2760 | 2338 | 7425 |
| 1895 | 818 | 1329 | 3069 | 2805 | 2384 | 7875 |
| 1964 | 848 | 1376 | 3180 | 2908 | 2471 | 8775 |
| 1997 | 862 | 1401 | 3235 | 2968 | 2512 | 9225 |
| 2029 | 876 | 1423 | 3286 | 3004 | 2553 | 9675 |
| 2060 | 890 | 1445 | 3337 | 3060 | 2592 | 10125 |
| 2090 | 902 | 1468 | 3386 | 3095 | 2630 | 10575 |
| 2184 | 943 | 1533 | 3538 | 3236 | 2748 | 12075 |
| 2220 | 958 | 1556 | 3596 | 3288 | 2794 | 12675 |
| 2258 | 975 | 1585 | 3658 | 3346 | 2842 | 13350 |
| 2300 | 993 | 1614 | 3726 | 3406 | 2894 | 14100 |
| 2348 | 1014 | 1646 | 3804 | 3476 | 2954 | 15000 |
| 2460 | 1062 | 1726 | 3985 | 3643 | 3095 | 17250 |
| 2618 | 1130 | 1832 | 4240 | 3887 | 3285 | 20825 |
| 2775 | 1198 | 1947 | 4495 | 4109 | 3491 | 24750 |
| 2912 | 1258 | 2049 | 4717 | 4324 | 3675 | 28875 |
| 2302 | 2336 | 4840 | 865 | 1499 | 2520 | 894 |
| 2318 | 2355 | 5175 | 868 | 1555 | 2596 | 914 |
| 2366 | 2400 | 5250 | 890 | 1540 | 2590 | 918 |
| 2405 | 2440 | 5515 | 905 | 1566 | 2634 | 933 |
| 2453 | 2489 | 5850 | 922 | 1598 | 2685 | 952 |
| 2504 | 2542 | 6225 | 942 | 1632 | 2743 | 972 |
| 2550 | 2580 | 6525 | 956 | 1658 | 2804 | 987 |
| 2600 | 2640 | 6975 | 978 | 1695 | 2849 | 1010 |
| 2695 | 2735 | 7875 | 1012 | 1773 | 2980 | 1050 |
| 2757 | 2784 | 8325 | 1041 | 1806 | 3035 | 1070 |
| 2797 | 2825 | 8775 | 1056 | 1830 | 3074 | 1089 |
| 2865 | 2894 | 9225 | 1073 | 1858 | 3121 | 1108 |
| 2905 | 2934 | 9675 | 1090 | 1888 | 3172 | 1126 |
| 2941 | 2970 | 10125 | 1108 | 1918 | 3223 | 1143 |
| 2979 | 3009 | 10575 | 1124 | 1946 | 3270 | 1160 |
| 3027 | 3057 | 11025 | 1140 | 1974 | 3317 | 1176 |
| 3121 | 352 | 12075 | 1175 | 2034 | 3418 | 1212 |
| 3161 | 3192 | 12675 | 1192 | 2064 | 3468 | 1230 |
| 3221 | 3253 | 13350 | 1215 | 2104 | 3535 | 1254 |
| 3295 | 3328 | 14100 | 1237 | 2142 | 3600 | 1276 |
| 3357 | 3380 | 15000 | 1262 | 2166 | 3640 | 1294 |
| 3443 | 3470 | 16125 | 1293 | 2219 | 3728 | 1326 |
| 3690 | 3727 | 20000 | 1385 | 2399 | 4030 | 1429 |
| 3986 | 4026 | 25000 | 1496 | 2590 | 4354 | 1544 |
| 4237 | 4270 | 30000 | 1590 | 2754 | 4626 | 1640 |
| 4460 | 4498 | 35000 | 1674 | 2900 | 4870 | 1725 |
| 4660 | 4697 | 40000 | 1749 | 3029 | 4926 | 1804 |
| 4847 | 4885 | 45000 | 1818 | 3150 | 5290 | 1876 |
| 5020 | 5060 | 50000 | 1884 | 3263 | 5480 | 1943 |
| 5182 | 5222 | 55000 | 1945 | 3368 | 5658 | 2005 |
| 5338 | 5380 | 60000 | 2003 | 3470 | 5828 | 2066 |
| 5483 | 5525 | 65000 | 2057 | 3564 | 5986 | 2122 |
| 5618 | 5662 | 70000 | 2108 | 3652 | 6134 | 2175 |
| 5750 | 5794 | 75000 | 2158 | 3737 | 6277 | 2225 |
| 5875 | 5918 | 80000 | 2204 | 3817 | 6410 | 2273 |
| 5995 | 6042 | 85000 | 2250 | 3896 | 6545 | 2320 |
| 6110 | 6157 | 90000 | 2297 | 3971 | 6670 | 2365 |
| 6110 | 6157 | 95000 | 2297 | 3971 | 6670 | 2365 |
| 6325 | 6375 | 100000 | 2374 | 4112 | 6907 | 2448 |
The description/sizes may be different with goods, please check with us when order.
