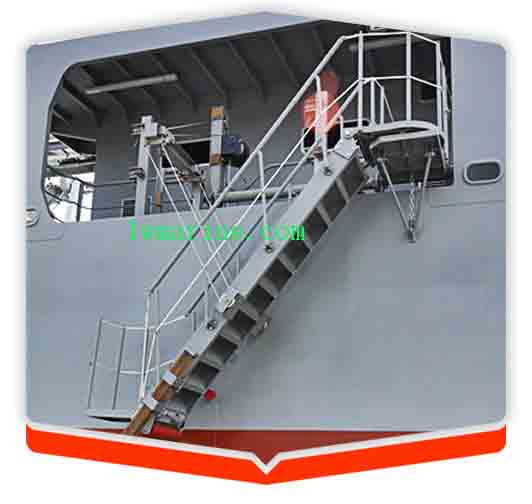

Heavy-Duty Ship Accommodation Ladder – Marine-Grade Aluminum/Steel Boarding Solution
Product Overview
Our premium heavy duty ship accommodation ladder provides safe and reliable boarding access between vessels and docks. Engineered for commercial marine applications, this robust gangway system is available in marine steel, stainless steel, aluminum, and copper to meet your specific requirements. The complete set includes integrated winch system and supporting steel platforms for effortless deployment.
Key Features & Benefits
✔ Material Options – Choose from marine steel, stainless steel, aluminum or copper construction
✔ Complete Turnkey System – Includes:
-
Upper/lower platforms
-
Driving tube & lazy arm mechanism
-
Fastening hooks & support tubes
-
Integrated winch system
✔ Two Structural Options: -
Rigid Structure: 8-15m length range (182-362kg)
-
Knock-Down Structure: 4-7.5m length range (205-388kg)
✔ Custom Engineering – Special configurations available
✔ 15-Year Structural Warranty – Industry-leading protection
Technical Specifications
| Model | Width (m) | Length Range (m) | Load Capacity | Warranty |
|---|---|---|---|---|
| 1 | 1.5 | 3.0-30.0 | 1.5-2.5kN/m² | 15 Years |
| 2 | 1.8 | 3.0-30.0 | 1.5-2.5kN/m² | 15 Years |
| 3 | 2.0 | 3.0-30.0 | 1.5-2.5kN/m² | 15 Years |
| 4 | 2.5 | 3.0-30.0 | 1.5-2.5kN/m² | 15 Years |
| 5 | 3.0 | 3.0-30.0 | 1.5-2.5kN/m² | 15 Years |
Turnover System Components
-
Upper platform with non-slip surface
-
Heavy-duty driving tube
-
Reinforced lazy arm mechanism
-
Structural support pillars
-
Fastening hooks and support tubes
Certification Options
Available with all major IACS certifications:
CCS | NK | RINA | DNV.GL | BV | ABS | LR
The description/sizes may be different with goods, please check with us when order.
