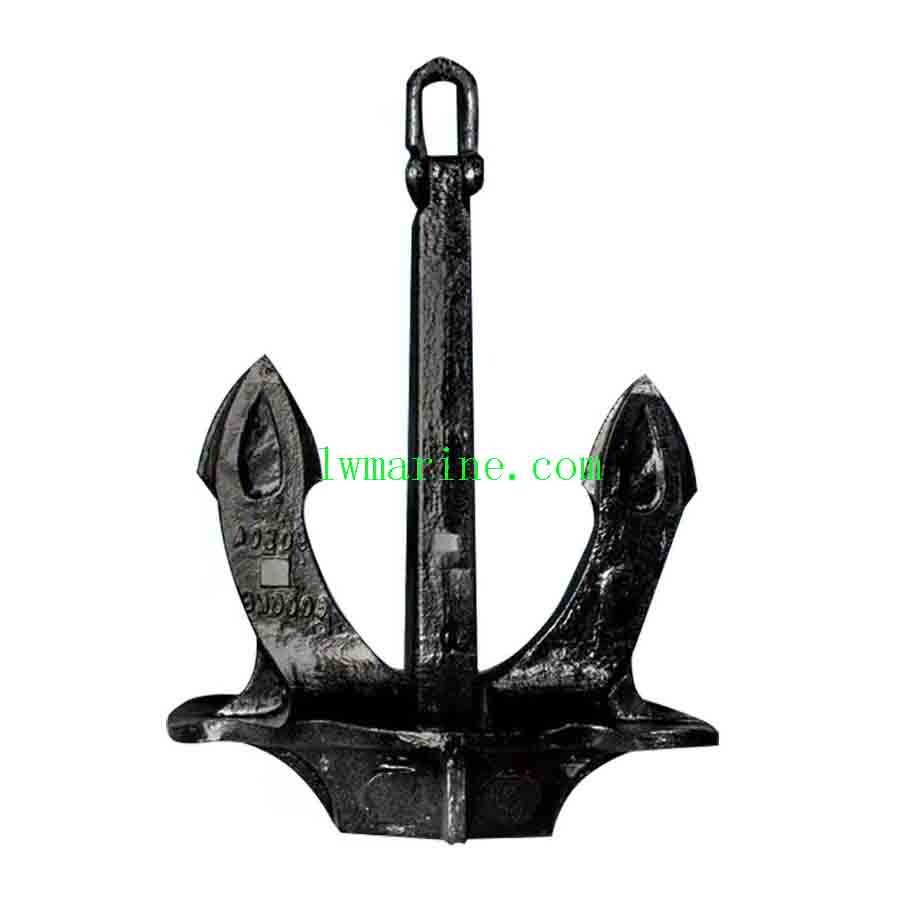

Hall Type Stockless Anchors

Hall Type Stockless Anchors | Certified & Versatile Marine Mooring Solution

Overview:
Discover the Hall Type Stockless Anchors – a globally trusted and classification-approved mooring solution designed for exceptional performance across all marine vessels. Manufactured in compliance with GB/T 546-1997 standards and certified by leading classification societies, this anchor offers superior reliability, easy stowage, and robust holding power. Available in three shank variations (Type A, B, and C) and weights from 100 kg to 46,000 kg, the Hall Anchor meets diverse operational needs for commercial shipping, offshore operations, and naval applications.

Key Features & Benefits:

Multiple Shank Options: Choose from Type A (Rectangle Shank), Type B (Round Shank), or Type C (Short Rectangle Shank) to match specific vessel requirements
Full Classification Society Approval: Certified by LR, ABS, BV, DNV, KR, NK, GL, IRS, and CCS with certificates available for each anchor
High-Strength Cast Steel Construction: Manufactured from ZG230-450C cast steel for superior durability and corrosion resistance
Stockless Design: Enables easy handling, compact storage, and efficient deployment on various vessel types
Universal Marine Application: Suitable for tankers, bulk carriers, container ships, offshore platforms, and general marine vessels
Standard Black Paint Finish: Provides additional corrosion protection and ready-to-use installation
Comprehensive Size Range: Available from 100 kg to 46,000 kg to accommodate vessels of all sizes

Technical Specifications:

Material: Cast Steel ZG230-450C
Weight Range: 100 kg to 46,000 kg
Standards: GB/T 546-1997
Finish: Black Paint
Certifications: LR, ABS, BV, DNV, KR, NK, GL, IRS, CCS

Detailed Dimensional Data (Select Models):

Weight (kg)	H (mm)	h (mm)	h1 (mm)	L (mm)	L1 (mm)	B1 (mm)	A (mm)	B (mm)	C (mm)
100	760	760	590	410	90	584	410	270	–
125	814	814	629	443	97	629	443	290	–
150	866	866	665	470	103	670	470	308	–
180	919	919	710	500	110	710	500	327	–
240	1019	1019	788	552	121	784	552	361	–
300	1095	1095	850	595	130	844	595	388	–
360	1160	1160	898	632	138	910	632	412	–
420	1222	1222	946	660	145	946	660	434	–
480	1282	1282	995	700	154	1000	700	460	–
570	1355	1355	1042	732	161	1042	732	481	–
660	1422	1422	1093	769	169	1096	769	506	–
780	1506	1506	1170	820	180	1170	820	540	–
900	1580	1580	1215	855	188	1220	855	560	–
1020	1645	1645	1268	885	194	1260	885	580	–
1140	1705	1705	1316	926	2063	1319	916	605	–
5000	2800	2800	2317	1510	332	2156	1510	992	–
10500	3571	3571	2920	1934	425	2752	1934	1273	–
20000	4420	4420	3617	2399	526	3411	2399	1578	–
31000	5126	5126	4188	2774	609	3949	2774	1822	–
46000	5847	5847	4777	3165	695	4505	3165	2078	–
