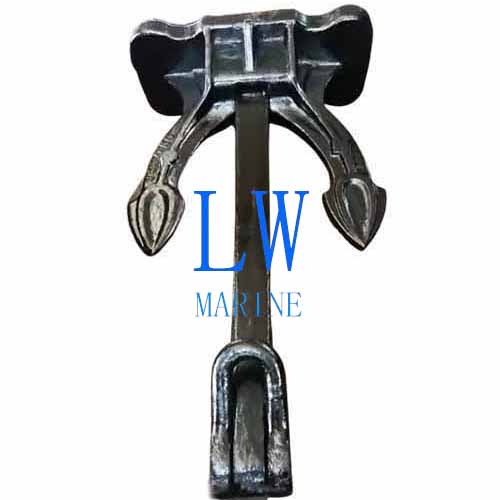

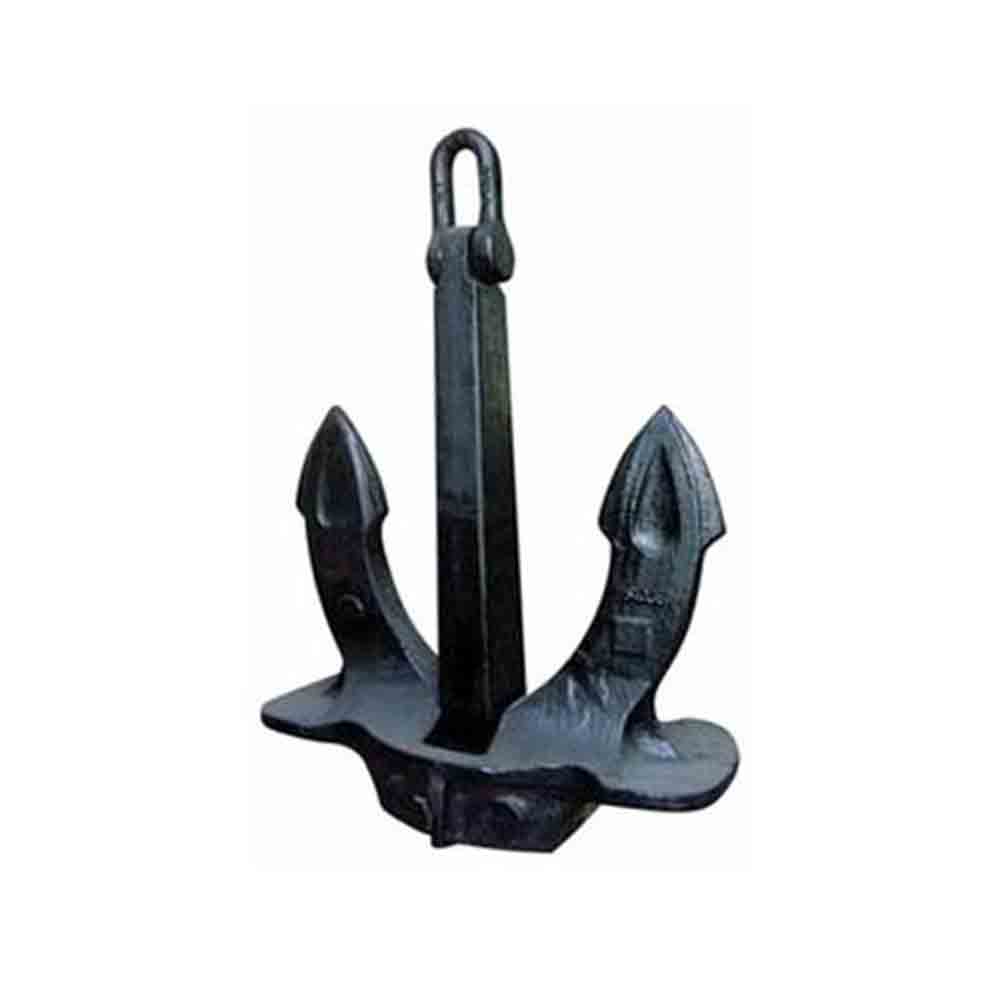

Hall Type Stockless Anchor

Hall Type Stockless Anchor

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Hall Type Stockless Anchor – Certified Marine Grade Anchors

Product Overview:
The Hall Type Stockless Anchor, manufactured in compliance with GB/T 546-1997 standards, is the preferred choice for diverse marine vessels worldwide. Our production process and technical drawings are certified by leading classification societies including LR, ABS, BV, DNV, KR, NK, GL, IRS, and CCS, with each anchor supplied with official classification certificates.

Available Variants:

  • Type A: Rectangular shank design

  • Type B: Round shank configuration

  • Type C: Compact rectangular shank

Technical Specifications:

  • Material: High-grade cast steel ZG230-450C

  • Weight Range: 100 kg to 46,000 kg

  • Surface Treatment: Protective black paint coating

  • Certifications: LR, ABS, BV, DNV, KR, NK, GL, IRS, CCS

Nominal Weight Size(mm)
(KG) h h1 L L1 H B1
A B C
100 410 90 584 410 760 760 590 270
125 443 97 629 443 814 814 629 290
150 470 103 670 470 866 866 665 308
180 500 110 710 500 919 919 710 327
240 552 121 784 552 1019 1019 788 361
300 595 130 844 595 1095 1095 850 388
360 632 138 910 632 1160 1160 898 412
420 660 145 946 660 1222 1222 946 434
480 700 154 1000 700 1282 1282 995 460
570 732 161 1042 732 1355 1355 1042 481
660 769 169 1096 769 1422 1422 1093 506
780 820 180 1170 820 1506 1506 1170 540
900 855 188 1220 855 1580 1580 1215 560
1020 885 194 1260 885 1645 1645 1268 580
1140 926 2063 1319 916 1705 1705 1316 605
1290 965 211 1374 965 1778 1778 1378 630
1440 1001 219 1430 1001 1844 1844 1448 655
1590 1035 226 1475 1035 1906 1906 1511 677
1740 1070 234 1520 1070 1966 1966 1571 700
1920 1104 241 1560 1104 2031 2031 1602 722
2100 1120 245 1560 1120 2093 2093 1651 732
2280 1162 255 1657 1165 2150 2150 1716 763
2460 1200 263 1710 1200 2207 2207 1785 788
2640 1222 263 1730 1222 2259 2259 1843 796
2850 1253 271 1787 1253 2318 2318 1890 822
3060 1275 280 1820 1275 2374 2374 1970 836
3300 1317 288 1880 1317 2432 2432 1985 862
3540 1345 294 1920 1345 2480 2480 2032 880
3780 1376 302 1965 1376 2547 2547 2077 902
4050 1406 309 2008 1406 2610 2610 2125 924
4320 1435 316 2051 1435 2695 2695 2171 943
4590 1465 322 2093 1465 2712 2712 2216 962
4890 1498 329 2135 1498 2769 2769 2263 984
5000 1510 332 2156 1510 2800 2800 2317 992
5610 1569 345 2234 1569 2899 2899 2369 1031
6000 1610 354 2290 1610 2965 2965 2422 1056
6450 1644 361 2340 1644 3037 3037 2482 1080
6900 1681 369 2393 1681 3100 3100 2538 1105
7350 1688 370 2400 1688 3100 3100 2592 1109
7800 1750 385 2493 1752 3235 3235 2644 1152
8300 1788 393 2545 1788 3363 3363 2699 1176
8500 1800 395 2565 1800 3355 3355 2742 1184
9300 1850 417 2632 1850 3430 3430 2804 1226
9900 1896 417 2699 1896 3510 3510 2863 1248
10500 1934 425 2752 1934 3571 3571 2920 1273
11100 1970 433 2803 1970 3638 3638 2975 1297
11700 2005 441 2853 2005 3702 3702 3028 1320
12300 2039 448 2901 2039 3764 3764 3079 1342
12900 2072 455 2947 2072 3824 3824 3128 1363
13500 2104 462 2992 2104 3882 3882 3176 1384
14100 2135 469 3036 2135 3939 3939 3222 1404
14700 2165 476 3078 2165 3994 3994 3267 1424
15400 2199 483 3126 2199 4056 4056 3318 1446
16100 2232 490 3173 2232 4117 4117 3368 1468
16900 2268 498 3225 2268 4184 4184 3423 1492
17800 2308 506 3281 2308 4252 4252 3479 1518
18800 2350 516 3341 2350 4330 4330 3543 1546
20000 2399 526 3411 2399 4420 4420 3617 1578
21500 2458 539 3494 2458 4528 4528 3705 1617
23000 2514 551 3573 2514 4631 4631 3789 1654
24500 2568 563 3649 2568 4730 4730 3870 1689
26000 2619 574 3722 2619 4825 4825 3947 1723
27500 2668 585 3792 2668 4916 4916 4021 1756
29000 2716 595 3860 2716 5004 5004 4093 1787
31000 2774 609 3949 2774 5126 5126 4188 1822
33000 2833 622 4032 2833 5234 5234 4276 1860
35500 2903 637 4132 2903 5363 5363 4381 1906
38500 2982 655 4245 2982 5510 5510 4502 1958
42000 3070 674 4370 3070 5672 5672 4634 2015
46000 3165 695 4505 3165 5847 5847 4777 2078

All specifications are approximate and subject to normal manufacturing variances. Buyer shall confirm final requirements prior to order confirmation.
