Gangway Winch
GB1392 – 85
It is mainly used for lifting and lowering the gangway during ship mooring and for lifting and lowering the crew ladder when the ship enters or leaves the port. The motor shaft line is parallel to the drum shaft line distribution.
Diagrams

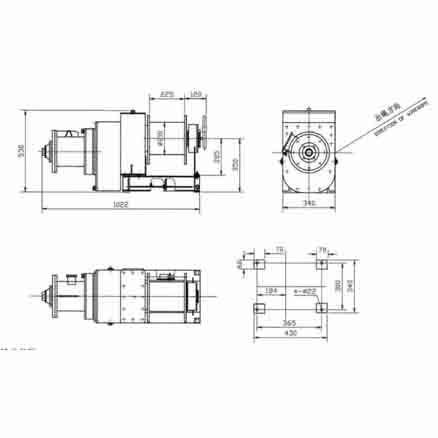

The image contains multiple technical diagrams of the winchnset:
- A front – view and a top – view of the overall structure with dimensional annotations in millimeters (mm).
- A detailed cross – sectional view of the internal components.
- A right – side view showing the motor and other parts with dimensions.
- A diagram indicating the direction of rotation.
Main Technical Parameters
Electric Winch
| Parameter | Specification for Different Models |
|---|---|
| 10kN | |
| Working load | 10kn |
| Support load | 30kn |
| Rope diameter | φ13mm |
| Motor power (380V 50Hz) | 2.2kW |
| Motor power (440V 60Hz) | 2.5kW |
| Drum capacity | 37m |
| Hoisting speed | 8.09m/min |
Pneumatic Winch
| Parameter | Specification |
|---|---|
| Working load | 10kn |
| Support load | 30kn |
| Rope diameter | φ13 – 15mm |
| Power of pneumatic motor | 3.5 – 5.5PS |
| Air consumption | 3.5 – 5.5m³/min |
| Air pressure | 0.5 – 0.7MPa |
| Hoisting speed | >9.75m/min |
Attention please: The description might be incorrect, please contact us for confirmation.
