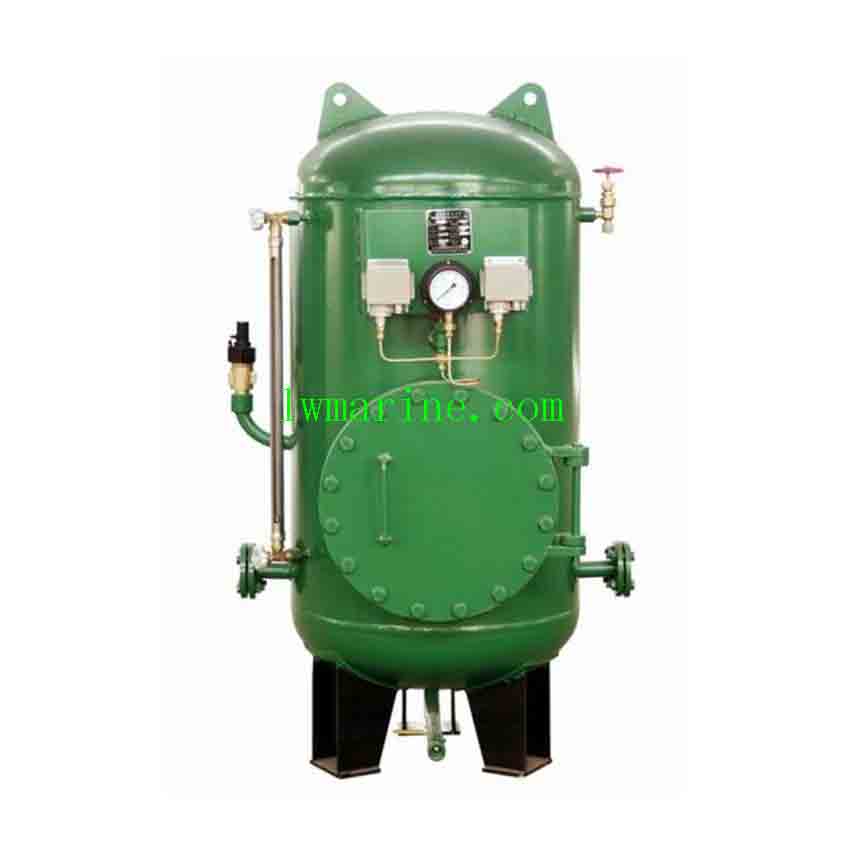

Fresh Water Hydrophore System
Introducing our high-quality Fresh Water Hydrophore System, featuring top-tier pressure water tanks (also known as hydrophore tanks) and combination pressure water tank supplies. These systems have been rigorously tested and approved by the International Maritime Organization (IMO), ensuring compliance with the highest international standards. Additionally, we offer a range of certification options, including CCS, ABS, BV, EC, and GL, to cater to your specific needs.
Constructed from durable materials such as carbon steel or stainless steel, our hydrophore tanks are built to withstand the rigors of marine environments and tall building applications. As a trusted navy supplier, we take pride in delivering products that meet the most stringent requirements.
Pressure Water Tank Features:
- Marine Water Supply: Our pressure water tanks are ideally suited for fresh water and seawater supply systems on board ships and vessels, ensuring a consistent and reliable water source.
- Water Sampling Capability: These tanks also serve as instruments for obtaining water samples from any desired depth in rivers, lakes, or oceans, facilitating environmental monitoring and research.
Combination Pressure Water Tank Advantages:
- Versatile Water Management: A combination pressure water tank is designed to pump, store, and supply both fresh and grey water in tall buildings and marine settings. The system comprises one or more chambers equipped with valves, sensors, and pipework for efficient operation.
- Controlled Water Distribution: Often operating under pressure and in conjunction with a calorifier, our hydrophore chambers can provide hot or cold fresh or seawater to ships in a controlled manner. This ensures optimal water temperature and pressure, enhancing comfort and safety on board.
- Regulatory Compliance: The system incorporates additional regulatory measures, such as temperature and pressure control, to ensure compliance with industry standards and regulations.
Technical Specifications:
| Model | ZYG-0.12 | ZYG-0.2 | ZYG-0.3 | ZYG-0.5 | ZYG-1.0 | ZYG-1.5 | ZYG-2.0 |
|---|---|---|---|---|---|---|---|
| Volume (m³) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 |
| Working Pressure (MPa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Design Pressure (MPa) | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 |
| Test Pressure (MPa) | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 |
| Safety Valve Take-off Pressure (MPa) | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
| Working Temperature (℃) | 0~45 | 0~45 | 0~45 | 0~45 | 0~45 | 0~45 | 0~45 |
| Design Temperature (℃) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Water Pump Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | 1.5CWX-3/3A | 1.5CWX-3/3A | 1.5CWX-3/3A | 1.5CWX-3/3A |
| Flow Rate (m³/h) | 3 | 6.5 | 10 | 10 | 10 | 10 | 10 |
| Pumping Head (m) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Power (kW) | 2.2 | 3 | 4 | 4 | 4 | 4 | 4 |
Frequently Asked Questions (FAQs):
- Q: What materials are used in the construction of your fresh water hydrophore tanks?
- A: Our hydrophore tanks are typically constructed from high-quality carbon steel or stainless steel, ensuring durability and longevity in marine and tall building applications.
- Q: Can your pressure water tanks be used for both fresh water and seawater supply systems?
- A: Yes, our pressure water tanks are designed to accommodate both fresh water and seawater supply systems, providing a versatile solution for various marine needs.
- Q: What certifications do your fresh water hydrophore systems hold?
- A: Our systems have been approved by IMO and are available with a range of certifications, including CCS, ABS, BV, EC, and GL, to meet your specific compliance requirements.
- Q: How does a combination pressure water tank work in tall buildings?
- A: A combination pressure water tank in tall buildings pumps, stores, and supplies fresh or grey water through a system of chambers, valves, sensors, and pipework. It operates under pressure to ensure a consistent water supply throughout the building.
- Q: What are the benefits of using a hydrophore chamber with a calorifier on board a ship?
- A: Combining a hydrophore chamber with a calorifier allows for controlled distribution of hot or cold fresh or seawater on board a ship. This enhances comfort and safety by ensuring optimal water temperature and pressure while complying with regulatory standards.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
