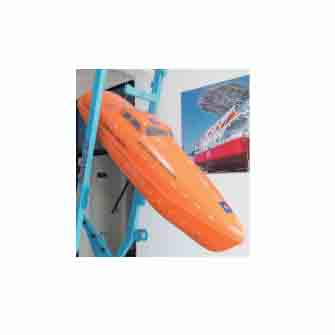

FREEFALL LIFEBOAT
JY145CF/FF SERIES
PRODUCT DESCRIPTION
The JY145CF/FF is a freefall lifeboat with 77 persons specially designed to meet the latest regulations for the Norwegian Continental Shelf in the North Sea, the higher and more complex standards beyond SOLAS rules for freefall lifeboats.
KEY FEATURES
- Design bases on DNV OS-E406 & SOLAS
- 77 persons with an average weight of 82.5kg
- Five points seat belt ensures the safety and comfort of each person
- Strength test of up to 45 meters height
- The safety and comfort of persons in each operation step is fully considered
OPTIONAL EQUIPMENT
- VHF
- Side-power thruster system
- Internal amplified communications system
- Echo sounder
- Fire Alarm Control Panel
- Tank Level Alarm Device
- AIS-SART
- Two way radio telephone
- EPIRB
- Self-releasing plug
PRODUCT SPECIFICATION TABLE
| Model | Dimension (m) | Person (p) | Full Load (kg) | Certification height (m) |
|---|---|---|---|---|
| JY109CF/FF-PELICAN 68 | 10.90×2.95×3.30 | 68 | 13420 / 13900 | 33 |
| JY145CF/FF-PELICAN 108 | 14.50×3.25×3.40 | 108 | 16560 / 16900 | 45 |
| JY145FF(E406)T7 | 14.50×3.87×4.0 | 77 | 24200 | 45 |
Scale model marked on the product: JY-FH850
Note: The description may be different with the product, please contact us for quotation.
