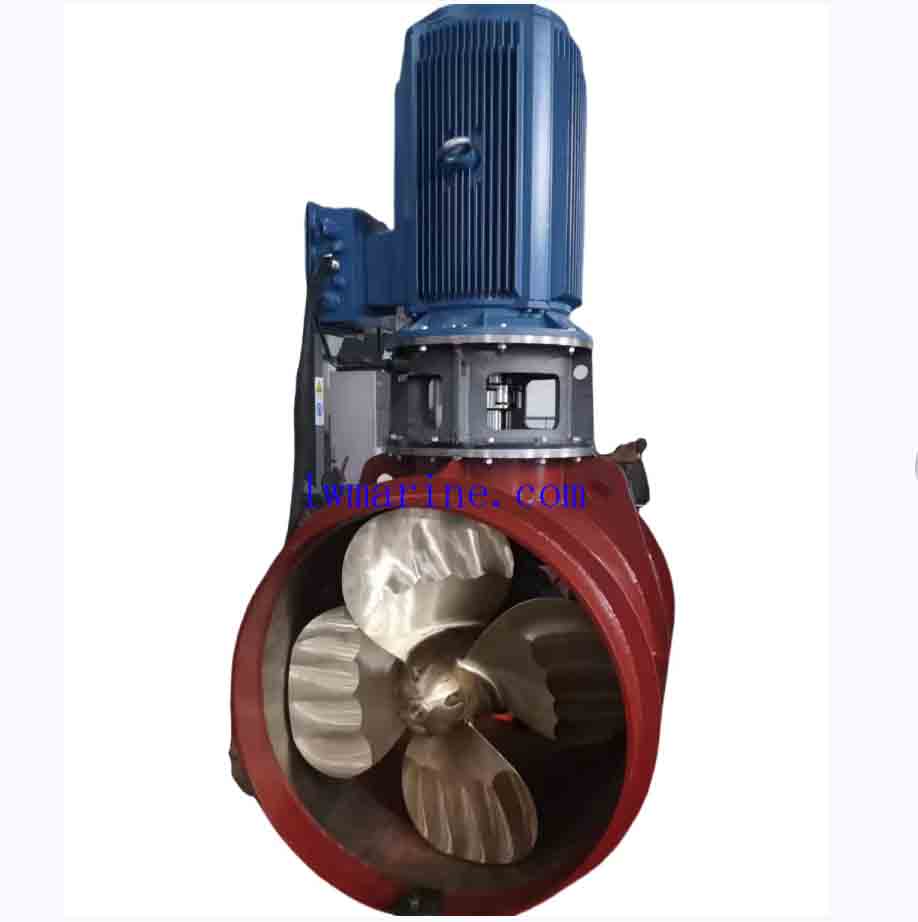

FPP Bow Thruster – Reliable & High-Performance Maneuvering Solution
Product Overview
Our Fixed Pitch Propeller (FPP) Bow Thruster provides powerful, efficient lateral thrust for precise vessel control during docking, slow-speed maneuvering, and dynamic positioning. Designed for durability and simplicity, these thrusters are certified by major classification societies and available in a wide range of power and size options.
Key Features & Benefits
✔ Fixed Pitch Propeller (FPP) Design – Simple, robust, and low-maintenance
✔ Wide Power Range – 63KW to 2000KW to suit various vessel sizes
✔ Propeller Diameter Options – 500mm to 2800mm for optimized hydrodynamic performance
✔ Global Certification – Approved by ABS, BV, DNV, CCS, NK, KR, GL, and more
✔ Customizable Solutions – Tailored designs based on your vessel’s specifications
Technical Specifications
-
Type: Fixed Pitch Propeller (FPP)
-
Input Power: 63KW – 2000KW
-
Propeller Diameter: 500mm – 2800mm
-
Drive Options: Electric, Hydraulic, or Diesel
-
Applications:
-
Docking & low-speed maneuvering
-
Emergency steering assistance
-
Dynamic positioning (DP) support
-
| FPP Bow Thruster Technique Data | ||||||||||
| Model | BT500 | BT600 | BT700 | BT800 | BT1000 | BT1100 | BT1650 | BT2000 | BT2400 | BT2800 |
| Max. input power (KW) | 63/72 | 90/105 | 135/165 | 189/190 | 280/290 | 315/340 | 680/730 | 1050/990 | 1580/1720 | 2000/1910 |
| Max. thrust | 10/11.2 | 14.5/16.3 | 20/24.8 | 29.5/30.5 | 43/45.2 | 46/47 | 97/105 | 155/144 | 239/242 | 298/297 |
| Cylinder standard length (mm) | 600 | 800 | 800 | 920 | 1045 | 1045 | 1446 | 1680 | 1990 | 2280 |
| Cylinder standard inner dia. (mm) | 515 | 615 | 715 | 818 | 1020 | 1120 | 1680 | 2030 | 2430 | 2836 |
| Reduction ratio | 1.52 | 2.071 | 2.07 | 2.417 | 3.09 | 3.09 | 4.72 | 4.82 | 4.645 | 4.395 |
| Max. input torque (N.m) | 600 | 900 | 900 | 1400 | 2100 | 2100 | 3800 | 4500 | 7250 | 15400 |
| Max. input speed (r/min) | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1190 | 980/1190 | 980/880 |
| Propeller speed (r/min) | 954/1151 | 700/845 | 700/845 | 600/724 | 469.1/566 | 469/566 | 307/370 | 301/247 | 211/256 | 223/200 |
| Propeller dia. (mm) | 500 | 600 | 700 | 800 | 1000 | 1100 | 1650 | 2000 | 2400 | 2800 |
The description/sizes may be different with goods, please check with us when order.
