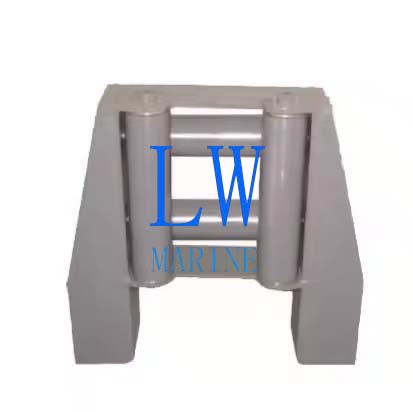

Four Rollers Fairlead

CB/T 3062-2011 Four Rollers Fairlead Type B – Premium Multi-Directional Rope Guidance System

Engineered for Superior Mooring Performance
Our Type B Four Rollers Fairlead provides advanced rope direction control while significantly extending mooring line lifespan. Designed to CB/T 3062-2011 standards, this professional-grade solution features:

✔ 4-Sided Roller System – Smooth directional changes for ropes
✔ Dual Rope Compatibility – Works with both steel wire (14-44mm) and nylon (36-100mm) ropes
✔ Reduced Rope Wear – Prolongs mooring system service life
✔ Standard-Compliant – Fully meets CB/T 3062-2011 requirements

Technical Specifications:
• Model: Four Rollers Fairlead Type B
• Construction: Heavy-duty cast steel & steel plate
• Rollers: 4 precision-engineered rollers
• Standards: CB/T 3062-2011 compliant

Parameters:

Nominal Dia.	Nylon Rope Dia.	SWL (KN)	Steel Wire Dia.	Weight (kg)	B	B1	B2	D	H	H1	L	L1	L2	L3	t
100	36	54	14	112	238	194	108	102	508	330	644	416	300	544	10
120	40	70	16	169	280	232	128	121	552	360	728	456	320	608	12
140	45	89	18	227	304	250	138	140	606	405	776	480	330	646	14
150	70	110	20	328	346	288	158	152	670	435	880	540	370	730	16
160	80	133	22	388	370	308	168	168	710	470	940	580	400	780	18
180	85	186	26	620	417	345	190	194	770	380	1030	620	420	850	20
200	95	216	28	789	459	385	210	219	820	410	1136	686	460	936	22
230	100	282	32	1067	521	445	240	245	910	450	1256	746	490	1026	25
260	100	357	36	1585	590	500	270	273	1000	500	1430	850	560	1170	28
320	100	533	44	2441	714	620	330	325	1130	570	1690	990	640	1370	30
