Flanged Self-Closing Drain Valve – CB/T4024-2005 JIS F7398

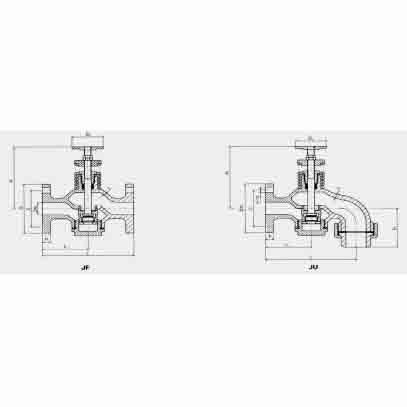

Basic Dimensions
| Nominal diameter | Structure dimension | Thickness | Flange | Bolt Th. | Range Th. | Key D₃ | Reference weight (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L₁ | H | H₁ | t | D | C | b | n | d₃ | A | B | ||||
| 25 | 130 | 65 | 135 | 67 | 4 | 125 | 90 | 14 | 4 | 19 | M16 | 10 | 70 | 4.70 | 3.8 |
| 40 | 180 | 90 | 165 | 96 | 5 | 140 | 105 | 16 | 4 | 19 | M16 | 13 | 80 | 8.10 | 7.4 |
| 50 | 220 | 110 | 196 | 116 | 8 | 155 | 120 | 16 | 4 | 19 | M16 | 15 | 80 | 12.40 | 12.2 |
