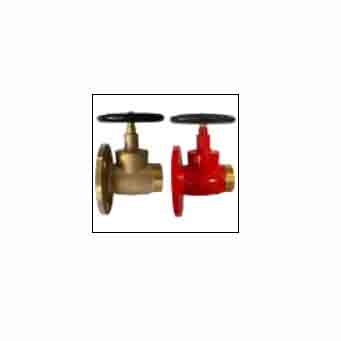

Flange Straight Type Fire Valve without Connection
| Model | Alternative Number | Specification | Hole Pitch (mm) | Flange Outer Diameter (mm) | Weight (Kg ±3%) |
|---|---|---|---|---|---|
| Flange straight type fire valve without connection | 756051 | DN40 | 110 | 140 | 3.1 |
| Flange straight type fire valve without connection | 756052 | DN50 | 125 | 160 | 4.45 |
| Flange straight type fire valve without connection | 756053 | DN65 | 145 | 178 | 5.45 |

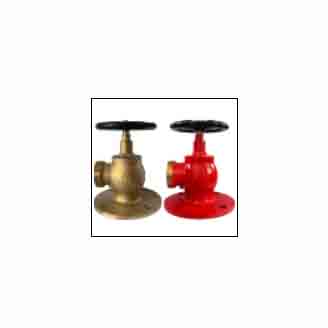

Flange Angle Type Fire Valve without Connection
| Model | Alternative Number | Specification | Hole Pitch (mm) | Flange Outer Diameter (mm) | Weight (Kg ±3%) |
|---|---|---|---|---|---|
| Flange angle type fire valve without connection | 756055 | DN40 | 110 | 140 | 2.5 |
| Flange angle type fire valve without connection | 756056 | DN50 | 125 | 160 | 3.65 |
| Flange angle type fire valve without connection | 756057 | DN65 | 145 | 178 | 4.7 |
Flange Straight Type Fire Valve without Connection (Nakajima Hole Pitch)
| Model | Alternative Number | Specification | Hole Pitch (mm) | British Pipe Thread | Weight (Kg ±3%) |
|---|---|---|---|---|---|
| Flange straight type fire valve without connection (Nakajima hole pitch) | 751712 | DN40 | 105 | G 1 1/2 | 3.1 |
| Flange straight type fire valve without connection (Nakajima hole pitch) | 751717 | DN50 | 120 | G2 | 4.45 |
| Flange straight type fire valve without connection (Nakajima hole pitch) | 751718 | DN65 | 140 | G2 1/2 | 5.45 |
Flange Angle Type Fire Valve without Connection (Nakajima Hole Pitch)
| Model | Alternative Number | Specification | Hole Pitch (mm) | British Pipe Thread | Weight (Kg ±3%) |
|---|---|---|---|---|---|
| Flange angle type fire valve without connection (Nakajima hole pitch) | 751714 | DN40 | 105 | G 1 1/2 | 2.5 |
| Flange angle type fire valve without connection (Nakajima hole pitch) | 751722 | DN50 | 120 | G2 | 3.65 |
| Flange angle type fire valve without connection (Nakajima hole pitch) | 751723 | DN65 | 140 | G2 1/2 | 4.7 |
Attention please: The description may be different with the product, please contact us for quotation.
