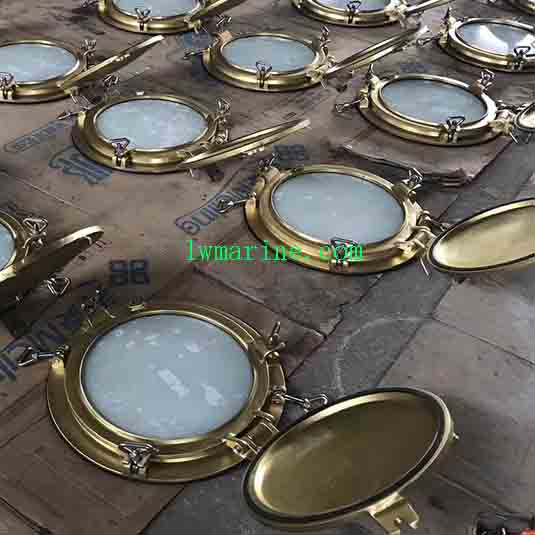

Fixed Brass Side Scuttle with Deadlight for Marine Vessels
Our Fixed Brass Side Scuttle with Deadlight combines traditional maritime aesthetics with modern marine engineering. These premium portholes are designed for ocean-going vessels, naval ships, and inland watercraft, offering reliable protection and timeless style.
Key Features & Benefits
✔ Three Strength Grades Available:
-
Heavy-duty: Brass or steel construction (maximum durability)
-
Medium-duty: Brass, aluminum, or steel options
-
Light-duty: Lightweight brass, aluminum, or steel
✔ Multiple Configuration Options:
-
Fixed or opening types
-
Clear or frosted glass
-
Deadlight for added protection
-
Bolted or welded installation
✔ Premium Materials:
-
Marine-grade brass (standard)
-
Optional aluminum or steel construction
-
Tempered safety glass
Technical Specifications
Standard Dimensions & Specifications
| Clear Size (D) | D1 | D2 | D3 | D4 | D5 | h | t | gmax | Bolt | Cutout |
|---|---|---|---|---|---|---|---|---|---|---|
| Φ200 | Φ245 | Φ204 | Φ250 | Φ350 | Φ310 | 155 | 10 | 8 | M16(12) | 253 |
| Φ250 | Φ295 | Φ254 | Φ305 | Φ400 | Φ364 | 182 | 12 | 8 | M16 | 308 |
| Φ300 | Φ350 | Φ304 | Φ360 | Φ450 | Φ414 | 207 | 15 | 10 | M16 | 363 |
| Φ350 | Φ400 | Φ354 | Φ410 | Φ500 | Φ464 | 232 | 15 | 12 | M18 | 413 |
| Φ400 | Φ450 | Φ404 | Φ460 | Φ550 | Φ514 | 257 | 19 | 12 | M18 | 463 |
| Φ450 | Φ500 | Φ454 | Φ510 | Φ600 | Φ564 | 282 | – | 15 | M20 | 513 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
