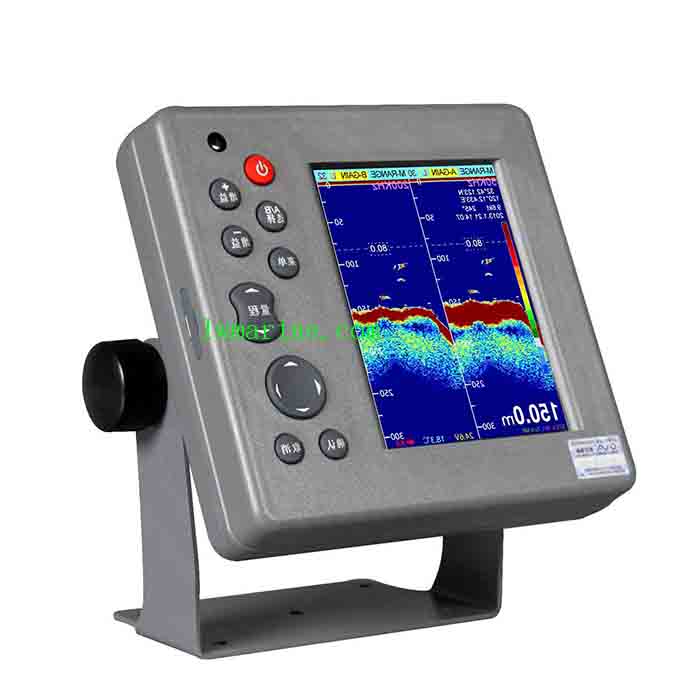

Commercial 2kw 12-Inch Fish Finder Sonar Fish Detector Device for Deep Sea Commercial Fishing Marine Supplies
Fish Finder Features:
* User-friendly design, beautiful and fashion, delicate and durable, containing multi-language menu display function.
* Full quick sampling, let every fish be shown.
* Storage and replay echo data and rapidly updating software.
* High contrast and brightness adjusting effect, suitable for use in bright light and at night.
* Advanced DSP high image supersonic digital processing technology, realizing the low blind spot and the high resolution echo.
* Dual frequency display, and multiple modes of background with human design.
Specification:
| Model | FS1220 |
| Processing | Digital Signal Processing(DSP) |
| Language | Chinese, English, Traditional Chinese |
| Display Size | 12″ Color TFT LCD |
| Resolution | 800x600px |
| Voltage Range | 24V DC(12~36V DC) |
| Frequency | 50&200KHz dual frequency |
| Output Transmit Power | 1000~5000W |
| Temperature Alarm | OFF/In Range/ Out Range |
| (Optional with temperature sensing transducer) | |
| Depth Alarm | OFF/In Range/ Out Range |
| Voltage Alarm | OFF/ON |
| Expansion Mode | OFF/Auto/Manual/Bottom Lock |
| Expansion Rate | X2, X4, X8, XR(Actual Resolution) |
| Emission Rate | 3600 times/minute on top |
| Pulse Length | 0.12~3.0ms |
| Measuring Accuracy | 0.1m |
| Sensitivity | -95 dBm |
| Depth Range | 0~2000m |
| Auto Range | OFF/ON |
| Auto Gain | OFF/L/M/H |
| A-Mode | OFF/ON |
| Fish School Alarm | OFF/Small/Large |
| Amplify Mode/Zoom Mode | OFF/Bottom Lock/Auto/Manual |
| Picture Advance Speed | 7 steps(stop, 1/8, 1/4, 1/2, x1, x2, x3) |
| NMEA0183 Input: GPS Information(GGA, RMC, VTG) | |
| NMEA0183 Output:Depth Data(DPT,DBT) | |
| Interface | Water Temperature Interface:x1 |
| Transducer Interface:x3 | |
| Power Interface:DC 24V | |
| Environment | Temperature:-10℃~40℃ |
| Background Color | 4 kinds |
| Color Assortment | 7 kinds |
| Depth Unit | Meter(m), Feet(ft), Fathom(fa) |
| Scale Line | OFF/ON |
| Clutter | Yes |
| TVG | OFF/L/M/H |
| TX Power | OFF/L/M/H |
| SD Card | Storage and replay function, software update |
The description/sizes may be different with goods, please check with us when order.
