FIBER REINFORCED PLASTICS(FRP) WEATHERTIGHT DOOR
262.YHS—058
THE PRODUCT HAS GRP DOOR LEAF AND STEEL OR STAINLESS STEEL DOOR FRAME, AS WELL AS GOOD WEATHERTIGHTNESS, USED FOR OUTSIDE DOOR OF SUPERSTRUCTURE.
表格

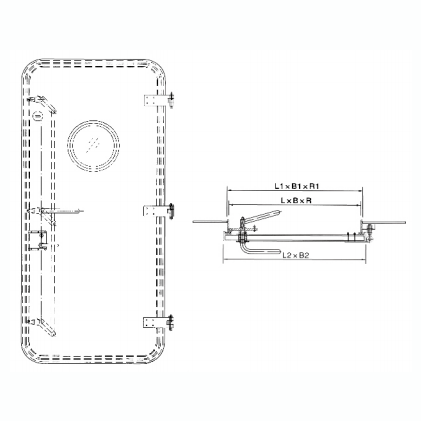

| SIZE OF DOORWAY
L×B×R |
SIZE OF B.H. OPENING
L1×B1×R1 |
EXTERNAL SIZE
L2×B2 |
OPENING | WEIGHT (KG) | OPTION |
|---|---|---|---|---|---|
| 1650×600×R100 | 1670×620×R100 | 1713×663 | LEFT OUTSIDE (LO) | 88 | PORT LIGHT, DOOR CLOSER, DOOR STOPPER |
| 1700×700×R100 | 1720×720×R100 | 1763×763 | LEFT OUTSIDE (LO) | 95 | PORT LIGHT, DOOR CLOSER, DOOR STOPPER |
| 1750×750×R100 | 1770×770×R100 | 1813×813 | RIGHT OUTSIDE (RO) | 101 | PORT LIGHT, DOOR CLOSER, DOOR STOPPER |
| 1800×800×R100 | 1820×820×R100 | 1863×863 | RIGHT OUTSIDE (RO) | 107 | PORT LIGHT, DOOR CLOSER, DOOR STOPPER |
AS INDICATION:
DOORWAY SIZE 1700×700, RIGHT OUTSIDE OPENING FOR FIBER REINFORCED PLASTICS(FRP) WEATHERTIGHT DOOR
FIBER REINFORCED PLASTICS(FRP) WEATHERTIGHT DOOR 1700×700-RO 262.YHS-058
Note: The description may be different with the product, please contact us for quotation.
