Ferry Passenger Seats

Ferry Passenger Seats

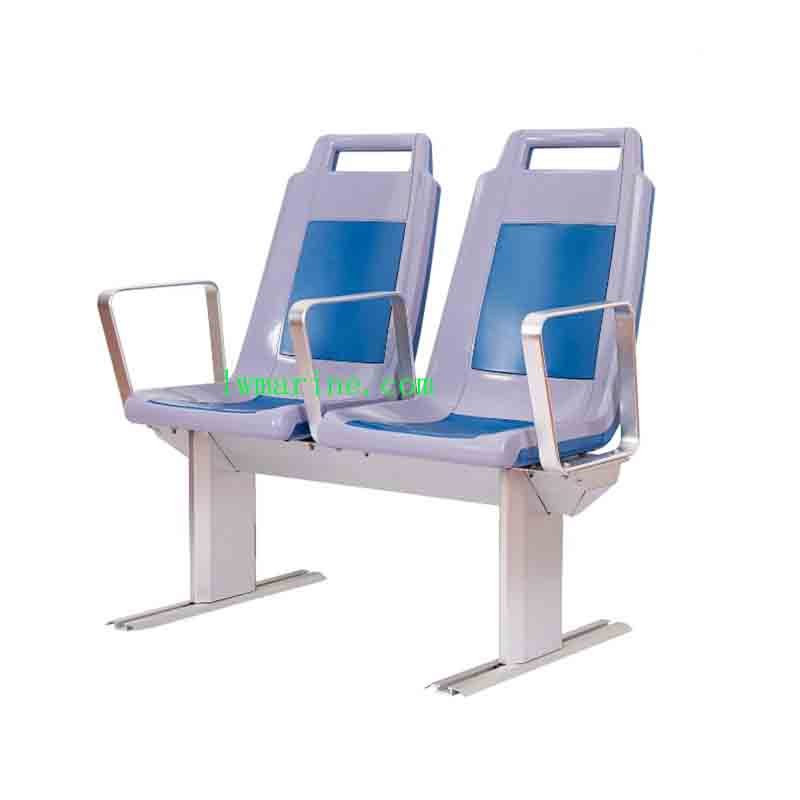

The TRA-03 Marine Passenger Seat is a premium, high-back economy class seating solution, specifically engineered to meet the rigorous demands of commercial passenger vessels. Designed to provide exceptional comfort, safety, and durability, the TRA-03 has become a trusted choice for ferry operators and shipbuilders worldwide, delivering an outstanding balance of passenger well-being and operational value.

Selected by numerous ship owners for their economy class cabins, this seat features a thoughtfully designed high-back contour that provides full ergonomic support for the shoulders, neck, and head. This ensures passengers remain comfortable throughout their journey, even on longer routes or in choppy sea conditions. With an average weight of just 10 kg per triple seat unit, the TRA-03 combines lightweight construction with robust, safety-certified strength.

Uncompromising Safety: Built to Withstand 12G Acceleration

Safety at sea is paramount. The TRA-03 is engineered with a high-strength framework capable of withstanding 12G vessel acceleration, a critical requirement for high-speed craft and vessels operating in demanding conditions. This structural integrity ensures passenger security in the event of sudden maneuvers or impact, providing peace of mind for both operators and passengers.

---

Key Features & Benefits

• ✅ High-Back Ergonomic Design: Provides full support for shoulders, neck, and head, significantly enhancing passenger comfort and reducing fatigue.

• ✅ Lightweight Yet Strong: Average weight of only 10kg per triple seat, helping to minimize overall vessel weight and fuel consumption without compromising strength.

• ✅ 12G Rated Structure: The aluminum frame is rigorously engineered to support 12G vessel acceleration, meeting stringent safety standards for high-speed craft.

• ✅ Flame-Retardant Upholstery: All upholstery materials (fabric, synthetic leather, or genuine leather) are approved and certified for flame retardancy, ensuring compliance with marine fire safety regulations.

• ✅ High-Quality Aluminum Construction: Frames, beams, legs, armrests, and tracks are manufactured from corrosion-resistant aluminum, ensuring long-term durability in the harsh marine environment.

• ✅ Proven Global Track Record: Over 300 vessels in 30 countries are fitted with TRASEA seating, demonstrating global acceptance and reliability.

• ✅ 10-Year Service Life Vinyl: Upholstery vinyl is imported from South Korea and certified by DNV GL and EC, guaranteeing a service life of over 10 years.

• ✅ IMO HSC Type Approved: Meets the requirements of the International Maritime Organization’s High-Speed Craft code, essential for international ferry operations.

---

Material Specifications

---

Seating Configurations & Dimensions

The TRA-03 can be configured in various row lengths to suit any vessel’s general arrangement. Standard configurations are shown below. Custom layouts are also available.

• Backrest Options: Available in Fixed or Reclining configurations.

• Recline Range: For reclining models, the backrest can recline from 106° to 124°, with a backward movement of up to 20cm.

---

Accessories & Customization

Standard Equipment (per seat):

• Life Jacket Storage: Each seat is equipped with a life jacket bag, box, or tray located under the seat.

• Document Pocket: A convenient document pocket is provided on the seat back.

Optional Accessories (Available upon request):

• Snack Table

• Cup Holder

• Seat Belt

• Life Jacket (integrated storage)

• Custom Logo / Branding

• Grab Handle

Armrest Options:

• Standard: Armrest between every seat, plus two ends.

• Special Arrangements: Custom armrest layouts available per client request.

• Shape Options: Open Curved, Open Flat, Closed Curved.

• Finish: Armrests are wrapped in cover material, matching the seat color and fabric.

---

Installation: Track Mounting System

The TRA-03 is designed for efficient and secure installation using a track mounting system.

1. Track Installation: TRASEA provides the mounting tracks. The shipyard or client installs the tracks on the deck floor using rivets or bolts (supplied by the client).

2. Seat Mounting: The seat legs are then securely fastened onto the installed tracks. This system allows for flexibility in positioning and simplifies future reconfiguration or replacement.

---

Global Trust & Proven Performance

TRASEA has a long and successful history of supplying marine seating to satisfied customers worldwide.

Case Study: Major Malaysian Ferry Operator
Since 2013, TRASEA has been the trusted supplier for one of Malaysia’s largest and fastest ferry services. After initially supplying 271 TRA-02 seats, the operator returned to TRASEA, stating, “We are more than happy to have TRASEA marine seating for our fast ferry and it surpasses our existing marine seats.” This confidence led to a contract for 1,167 TRA-03 seats for two additional vessels, finalized in a single afternoon, demonstrating the trust and efficiency of our partnership.

Recent TRA-03 Projects:

---

Why Choose TRASEA?

• Two-Year Warranty: Comprehensive warranty coverage for your peace of mind.

• Global Experience: 300+ vessels fitted in 30+ countries.

• Certified Quality: Vinyl certified by DNV GL and EC; IMO HSC type approved.

• Highest Cost/Performance Ratio: Delivering exceptional value and quality in the global ferry seating industry.

• Engineering Support: We can assist with vessel General Arrangement (GA) planning to optimize seating layout.

---

Frequently Asked Questions (FAQs)

Q1: What does “12G vessel acceleration” mean for a passenger seat?
A: This is a critical safety certification for seats on high-speed craft. “12G” means the seat and its attachment to the deck are designed and tested to withstand an acceleration force of 12 times the force of gravity without failing. This simulates the forces experienced during a high-speed impact or sudden deceleration, ensuring the seat remains securely anchored to protect passengers.

Q2: Is the TRA-03 suitable for both high-speed ferries and conventional vessels?
A: Yes. The TRA-03 is versatile. Its robust 12G-rated construction makes it ideal for high-speed craft (where safety standards are most stringent), while its comfortable high-back design and durable aluminum construction also make it an excellent choice for conventional passenger ferries, crew boats, and workboats.

Q3: What flame retardancy standards do the upholstery materials meet?
A: All materials used for upholstery—including fabric, synthetic leather, and genuine leather—are approved and certified to meet international marine fire safety standards. This typically includes testing for resistance to cigarette ignition, match flame ignition, and spread of flame, ensuring compliance with SOLAS and other maritime regulations.

Q4: How are the seats installed, and what do we need to provide?
A: The seats are installed using a track mounting system. We provide the tracks. The shipyard or installer is responsible for securing the tracks to the deck using appropriate rivets or bolts (not supplied by TRASEA). The seat legs then bolt directly onto the installed tracks. This method provides a strong, secure, and easily adjustable foundation.

Q5: Can you customize the seat configuration or add our company logo?
A: Yes, absolutely. We offer extensive customization options. We can manufacture seats in various row configurations (singles, doubles, etc.) to match your vessel’s GA. We can also add your company logo to the seat backs or headrests, integrate cup holders, snack tables, seat belts, and other accessories to meet your specific operational requirements.
