Fast Opening & Closing Steel Watertight Door – 262.YHS-023
Application
The applicable water pressure for the door is no more than 0.15 MPa.
Optional Features
-
Bumper
-
Door closer
-
C2 lock
-
ISPS device
-
Limit switch
-
Port light

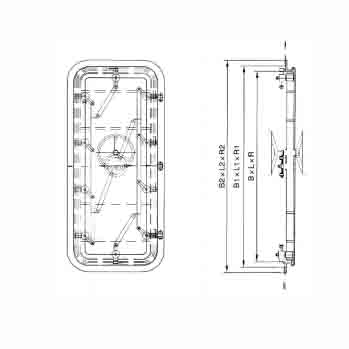

Dimensions and Specifications (See Table Below)
| Doorway Size B × L × R | Cutout in Steel Wall B1 × L1 × R150 | External Size B2 × L2 × R200 | Thickness T (mm) | Weight (kg) |
|---|---|---|---|---|
| 600 × 1500 × 100 | 700 × 1600 × 150 | 800 × 1700 × 200 | 206 | 239 |
| 600 × 1600 × 100 | 700 × 1700 × 150 | 800 × 1800 × 200 | 212 | 239 |
| 700 × 1500 × 100 | 800 × 1800 × 150 | 900 × 1900 × 200 | 227 | 239 |
| 700 × 1600 × 100 | 800 × 1700 × 150 | 900 × 1900 × 200 | 249 | 239 |
| 800 × 1500 × 100 | 900 × 1800 × 150 | 1000 × 1700 × 200 | 268 | 239 |
| 800 × 1600 × 100 | 900 × 1800 × 150 | 1000 × 1900 × 200 | 289 | 239 |
(Note: The “Thickness T” column in the original table appears to show unusually high values (206–289 mm). This may represent overall door thickness or another measurement. Please verify against the original document.)
Model Designation Example
Doorway size 600 × 1500, door plate thickness 8 mm, steel watertight pressure door (right outside opening).
Steel Watertight Pressure Door 600 × 1500-8 – 262.YHS-023
Note: The description may be different with the product, please contact us for quotation.
