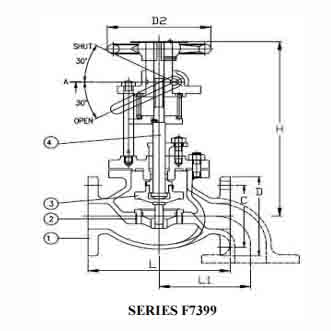

SERIES F7399-JIS 5K and 10K Emergency Shut-Off Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K&10K
Series F7399
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Cast Steel | SC49 |
| 2- Seat | SUS/Bronze | SCS2/BC6 |
| 3- Disc | SUS/Bronze | SCS2/BC6 |
| 4- Stem | SUS/Brass | SUS403/C3771BD |
Hydraulic Inspection
(No specific values provided in the extracted table.)
JIS F7399 – 5K & 10K Dimensions
| Size | 5K Flanged | 10K Flanged | H | D1 | KG | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | D | C | No | h | t | L | L1 | D | C | No | h | t | ||||
| 25 | 130 | 75 | 60 | 75 | 4 | 12 | 10 | 130 | 80 | 125 | 90 | 4 | 19 | 14 | 265 | 120 | 8.5 |
| 40 | 160 | 100 | 75 | 95 | 4 | 15 | 12 | 170 | 85 | 140 | 105 | 4 | 19 | 16 | 310 | 140 | 12.7 |
| 50 | 210 | 125 | 90 | 105 | 4 | 15 | 14 | 220 | 125 | 155 | 120 | 4 | 19 | 16 | 335 | 160 | 20.9 |
| 65 | 250 | 155 | 100 | 130 | 4 | 15 | 14 | 270 | 155 | 175 | 140 | 4 | 19 | 18 | 395 | 180 | 30.5 |
| 80 | 280 | 165 | 120 | 145 | 4 | 19 | 18 | 300 | 165 | 185 | 150 | 8 | 19 | 18 | 420 | 180 | 35.4 |
| 100 | 340 | 200 | 130 | 165 | 8 | 19 | 18 | 350 | 200 | 210 | 175 | 8 | 19 | 18 | 510 | 224 | 55.6 |
| 125 | 410 | 250 | 160 | 200 | 8 | 19 | 20 | 420 | 250 | 250 | 210 | 8 | 19 | 20 | 440 | 250 | 62 |
| 150 | 480 | 300 | 180 | 230 | 8 | 19 | 22 | 490 | 300 | 280 | 240 | 8 | 19 | 22 | 520 | 320 | 80 |
Note: The description may be different with the product, please contact us for quotation.
