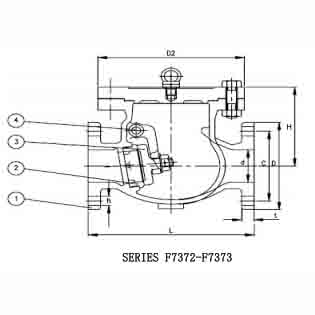

SERIES F7372-JIS5K SERIES F7373-JIS10K Cast Iron Swing Check Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K&10K
Series F7372 & F7373
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Cast Iron | FC200 |
| 2- Hinge | Brass | C3771BD |
| 3- Stem | Bronze | BC6 |
| 4- Seat | Bronze | BC6 |
Hydraulic Inspection Pressure
| Nominal Pressure | 5K | 10K |
|---|---|---|
| Body | 1.03[10.5] | 2.06[21.0] |
| Seat | 0.76[7.7] | 1.51[15.4] |
F7372 – 5K Dimensions
| Type | Size | L | D | C | NO | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|---|
| F7372 | 50 | 190 | 130 | 105 | 4 | 15 | 16 | 97 | 135 | 9.06 |
| 65 | 220 | 155 | 130 | 4 | 15 | 18 | 119 | 155 | 13.90 | |
| 80 | 250 | 180 | 145 | 8 | 19 | 18 | 129 | 185 | 19.10 | |
| 100 | 280 | 200 | 165 | 8 | 19 | 20 | 146 | 205 | 27.10 | |
| 125 | 330 | 235 | 200 | 8 | 19 | 20 | 171 | 235 | 39.00 | |
| 150 | 380 | 265 | 230 | 8 | 19 | 22 | 198 | 265 | 53.70 | |
| 200 | 460 | 320 | 280 | 12 | 23 | 24 | 235 | 330 | 94.40 | |
| 250 | 550 | 385 | 345 | 12 | 23 | 26 | 290 | 390 | 150.00 |
F7373 – 10K Dimensions
| Type | Size | L | D | C | NO | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|---|
| F7373 | 50 | 210 | 155 | 120 | 4 | 19 | 20 | 109 | 150 | 13.60 |
| 65 | 240 | 175 | 140 | 4 | 19 | 22 | 126 | 170 | 19.60 | |
| 80 | 270 | 185 | 150 | 8 | 19 | 22 | 136 | 185 | 22.60 | |
| 100 | 300 | 210 | 175 | 8 | 19 | 24 | 153 | 205 | 30.90 | |
| 125 | 350 | 250 | 210 | 8 | 23 | 24 | 180 | 250 | 49.20 | |
| 150 | 400 | 280 | 240 | 8 | 23 | 26 | 205 | 275 | 64.90 | |
| 200 | 480 | 330 | 290 | 12 | 23 | 26 | 242 | 330 | 103.00 |
Note: The description may be different with the product, please contact us for quotation.
