SERIES F7364-JIS 10K Cast Iron Gate Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-10K
Series F7364
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Cast Iron | FC200 |
| 2- Seat | SUS/Bronze | SCS2/BC6 |
| 3- Disc | SUS/Bronze | SCS2/BC6 |
| 4- Stem | SUS/Brass | SUS403/C3771BD |
Test Pressure MPa[kgf/cm²]
(No specific values were provided in the extracted table for Body/Seat; the original headers show “Diameter”, “Body”, “Seat” but no data.)

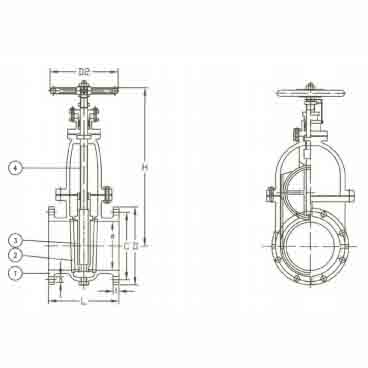

JIS F7364 Dimensions
| Size | L | D | C | No | h | H | t | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 200 | 155 | 120 | 4 | 19 | 300 | 20 | 140 | 19.4 |
| 65 | 220 | 175 | 140 | 4 | 19 | 350 | 22 | 160 | 27.6 |
| 80 | 230 | 185 | 150 | 8 | 19 | 400 | 22 | 180 | 33 |
| 100 | 250 | 210 | 175 | 8 | 19 | 450 | 24 | 200 | 45.8 |
| 125 | 270 | 250 | 210 | 8 | 23 | 520 | 24 | 224 | 65.9 |
| 150 | 290 | 280 | 240 | 8 | 23 | 580 | 26 | 250 | 86 |
| 200 | 320 | 330 | 290 | 12 | 23 | 700 | 26 | 315 | 136 |
| 250 | 380 | 400 | 355 | 12 | 25 | 840 | 30 | 400 | 230 |
| 300 | 440 | 445 | 400 | 16 | 25 | 960 | 32 | 450 | 331 |
| 350 | 500 | 490 | 445 | 16 | 25 | 1050 | 34 | 500 | 433 |
Note: The description may be different with the product, please contact us for quotation.
