SERIES F7363C-JIS 5K Cast Iron Gate Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K
Series F7363C
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Cast Steel | SC49 |
| 2- Seat | SUS/Bronze | SCS2/BC6 |
| 3- Disc | SUS/Bronze | SCS2/BC6 |
| 4- Stem | SUS/Brass | SUS403/C3771BD |
Test Pressure MPa[kgf/cm²]
(Values not specified in the extracted table; original shows placeholder “&” under Body/Seat columns.)

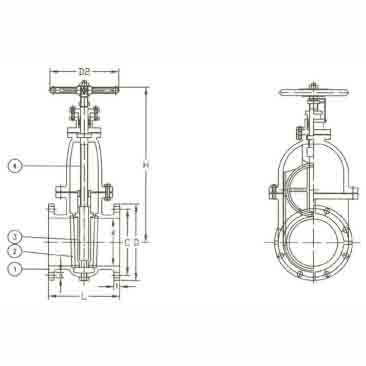

JIS F7363C Dimensions
| Size | L | D | C | No | h | H | t | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 180 | 130 | 105 | 4 | 15 | 285 | 16 | 125 | 14.6 |
| 65 | 190 | 155 | 130 | 4 | 15 | 330 | 18 | 140 | 20.6 |
| 80 | 200 | 180 | 145 | 4 | 19 | 380 | 18 | 160 | 26.2 |
| 100 | 230 | 200 | 165 | 8 | 19 | 430 | 20 | 180 | 38.2 |
| 125 | 250 | 235 | 200 | 8 | 19 | 495 | 20 | 200 | 52.1 |
| 150 | 270 | 265 | 230 | 8 | 19 | 560 | 22 | 224 | 70.7 |
| 200 | 290 | 320 | 280 | 8 | 23 | 680 | 24 | 280 | 111.5 |
| 250 | 330 | 385 | 345 | 12 | 23 | 800 | 26 | 355 | 177.6 |
| 300 | 370 | 430 | 390 | 12 | 23 | 920 | 28 | 400 | 255.5 |
| 350 | 410 | 480 | 435 | 12 | 25 | 1000 | 30 | 450 | 382.5 |
Note: The description may be different with the product, please contact us for quotation.
