SERIES F7352-JIS5K F7410-JIS16K Bronze Angle Valve (SDNR)
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K&16K

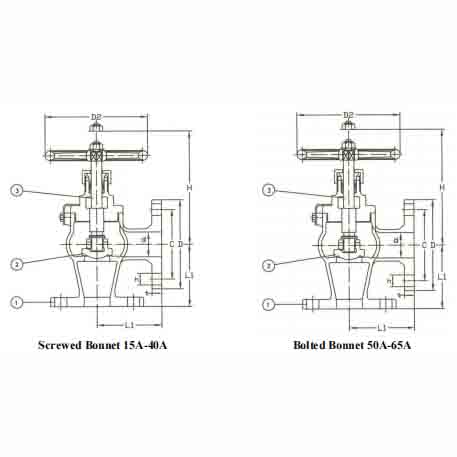

Screwed Bonnet 15A-40A
Bolted Bonnet 50A-65A
Series F7352 & F7410
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Bronze | BC6 |
| 2- Seat | Bronze | BC6 |
| 3- Disc | Stainless | C3771BD |
Hydraulic Inspection Pressure
(Pressure values not clearly associated in the original table, but based on format)
| Nominal Pressure | 5K | 16K |
|---|---|---|
| Body | — | — |
| Seat | — | — |
F7352 – 5K
| TYPE | SIZE | L | D | C | No | h | t | H | KG |
|---|---|---|---|---|---|---|---|---|---|
| F7352 | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 1.98 |
| 20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 2.73 | |
| 5K | 25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 3.44 |
| 32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 4.77 | |
| 40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 5.99 | |
| 50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 10.1 | |
| 65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 15.6 |
F7410 – 16K
| TYPE | SIZE | L | D | C | No | h | t | H | KG |
|---|---|---|---|---|---|---|---|---|---|
| F7410 | 15 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 2.73 |
| 20 | 75 | 100 | 75 | 4 | 15 | 14 | 130 | 3.65 | |
| 16K | 25 | 85 | 125 | 90 | 4 | 19 | 14 | 145 | 5.16 |
| 32 | 95 | 135 | 100 | 4 | 19 | 16 | 150 | 6.72 | |
| 40 | 100 | 140 | 105 | 4 | 19 | 16 | 165 | 8.13 |
Note: The description may be different with the product, please contact us for quotation.
