SERIES F7336-JIS 30K Forged Steel Globe Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-30K

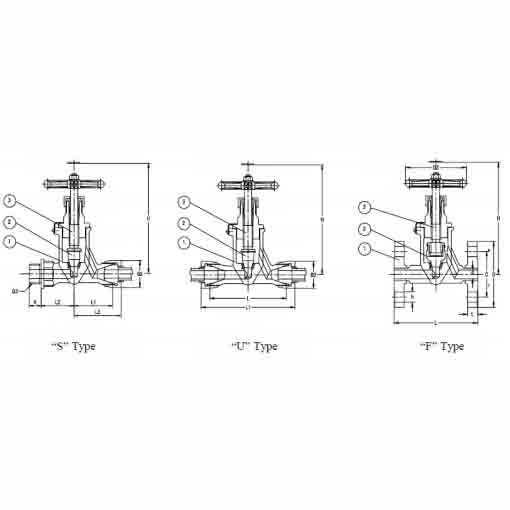

“S” Type
“U” Type
“F” Type
Series F7336
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Forged Steel | SC49 |
| 2- Seat | Stainless Steel | SUS403 |
| 3- Stem | SUS/BRASS | SUS402JI |
Test pressure MPa[kgf/cm²]
| Body | 6.9[69.0] |
|---|---|
| Seat | 5.06[50.6] |
Type of Connection & Nominal Dia
| Type | Type of Connection | Nominal Dia |
|---|---|---|
| S | Screw thread type | 6 and 10 |
| U | Union type | 6 and 10 |
| F | Flange type | 15 to 25 |
JIS F7336 – “S” / “U” / “F” Type Dimensions
| Type | Size | L | L1 | L2 | L3 | K | D | C | n | h | t | H | B2 | D3 | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| “S” | 6 | – | 42 | 38 | 51 | 12 | – | – | – | – | – | 130 | 30 | M20x1.5 | 1.26 |
| “S” | 10 | – | 51 | 45 | 63 | 16 | – | – | – | – | – | 150 | 41 | M24x2 | 1.8 |
| “U” | 6 | 84 | 102 | – | – | – | – | – | – | – | – | 130 | 30 | – | 1.3 |
| “U” | 10 | 102 | 126 | – | – | – | – | – | – | – | – | 150 | 41 | – | 1.94 |
| “F” | 15 | 150 | – | – | – | – | 115 | 80 | 4 | 19 | 18 | 200 | – | – | 5.6 |
| “F” | 20 | 170 | – | – | – | – | 120 | 85 | 4 | 19 | 18 | 220 | – | – | 7.09 |
| “F” | 25 | 200 | – | – | – | – | 130 | 95 | 4 | 19 | 20 | 250 | – | – | 9.46 |
Note: The description may be different with the product, please contact us for quotation.
