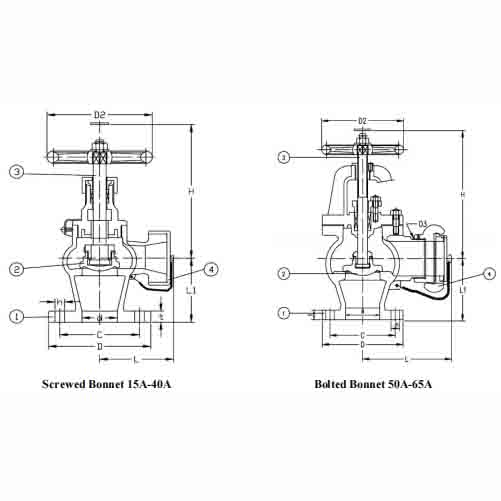

SERIES F7334B-JIS 5K&10K Bronze Hose Angle Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K&10K
Screwed Bonnet 15A-40A
Bolted Bonnet 50A-65A
Series F7334B
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Bronze | BC6 |
| 2- Seat | Bronze | BC6 |
| 3- Disc | Bronze | BC6 |
| 4- Stem | Brass | C3771BD |
Hydraulic Inspection Pressure
| Nominal Pressure | 5K | 10K |
|---|---|---|
| Body | 12kg | 24kg |
| Seat | 8kg | 12kg |
F7334B – 5K
| Type | Size | L | L1 | D | C | NO. | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F7334B | 15 | 68 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 | 2.41 |
| 25 | 78 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 | 3.44 | |
| 40 | 124 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 | 5.91 | |
| 50 | 155 | 100 | 130 | 105 | 4 | 15 | 14 | 255 | 160 | 11.00 |
F7334B – 10K
| Type | Size | L | L1 | D | C | NO. | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F7334B | 15 | 73 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 | 2.72 |
| 25 | 83 | 85 | 125 | 90 | 4 | 19 | 14 | 145 | 125 | 4.04 | |
| 40 | 124 | 100 | 140 | 105 | 4 | 19 | 16 | 165 | 140 | 8.19 | |
| 50 | 160 | 120 | 155 | 120 | 4 | 19 | 16 | 270 | 160 | 12.90 | |
| 65 | 180 | 130 | 175 | 140 | 4 | 19 | 19 | 295 | 200 | 14.30 |
Note: The description may be different with the product, please contact us for quotation.
