SERIES F7330-JIS 40K Forged Steel Angle Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-40K

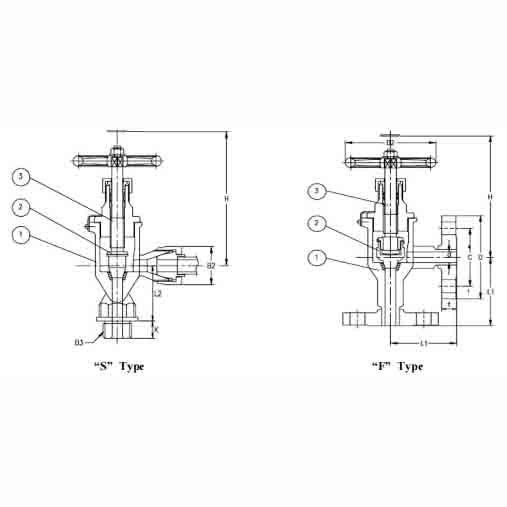

“S” Type
“F” Type
Series F7330
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Forged Steel | SC49 |
| 2- Seat | Stainless Steel | SUS403 |
| 3- Stem | SUS/Brass | SUS402JI |
Type of Connection & Nominal Dia
| Type | Type of Connection | Nominal Dia |
|---|---|---|
| S | Screw thread type | 6 and 10 |
| F | Flange type | 15 to 25 |
Test pressure MPa[kgf/cm²]
| Body | 9.12[93.0] |
|---|---|
| Seat | 6.69[68.2] |
JIS F7330 – “S” / “F” Type Dimensions
| Type | Size | L | L1 | L2 | L3 | K | D | C | n | h | t | H | B2 | D3 | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| “S” | 6 | – | 51 | 38 | 51 | 12 | – | – | – | – | – | 136 | 30 | M20x1.5 | 1.6 |
| “S” | 10 | – | 51 | 45 | 58 | 16 | – | – | – | – | – | 136 | 41 | M24x2 | 1.9 |
| “F” | 15 | – | 90 | – | – | – | 115 | 80 | 4 | 19 | 20 | 185 | – | – | 5.2 |
| “F” | 20 | – | 95 | – | – | – | 120 | 85 | 4 | 19 | 20 | 204 | – | – | 6.6 |
| “F” | 25 | – | 100 | – | – | – | 130 | 95 | 4 | 19 | 22 | 224 | – | – | 8.5 |
Note: The description may be different with the product, please contact us for quotation.
