SERIES F7323(C)-JIS16K Ductile Iron Globe Valve (SDNR)
SERIES F7324(C)-JIS16K Ductile Iron Angle Valve (SDNR)
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-16K

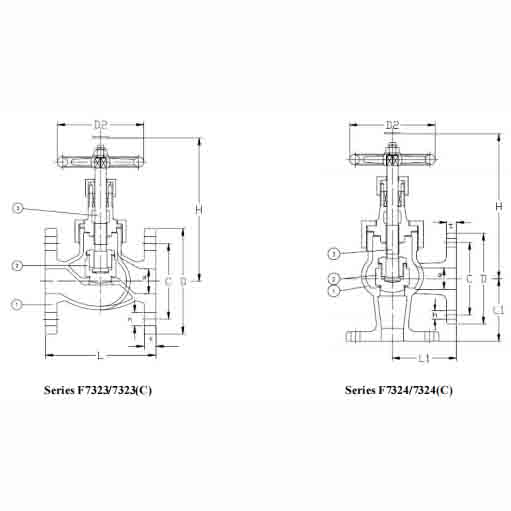

Series F7323/7323(C)
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Ductile iron | FCD450 |
| 2- Seat | SUS/Bronze | SCS2/BC6 |
| 3- Stem | SUS/Brass | SCS2/C3771BD |
Series F7324/7324(C)
| Test pressure MPa[kgf/cm²] |
|---|
| Body: 3.24 |
| Seat: 2.38 |
JIS F7323/7323(C) & JIS F7324/7324(C)
| Size | L | D | C | h | KG | Size | L1 | D | C | h | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16K15 | 110 | 95 | 70 | 4×Φ15 | 2.91 | 16K15 | 70 | 95 | 70 | 4×Φ15 | 2.85 |
| 16K20 | 120 | 100 | 75 | 4×Φ15 | 3.85 | 16K20 | 75 | 100 | 75 | 4×Φ15 | 3.75 |
| 16K25 | 130 | 125 | 90 | 4×Φ19 | 5.57 | 16K25 | 85 | 125 | 90 | 4×Φ15 | 5.36 |
| 16K32 | 160 | 135 | 100 | 4×Φ15 | 7.40 | 16K32 | 95 | 135 | 100 | 4×Φ15 | 7.05 |
| 16K40 | 180 | 140 | 105 | 4×Φ19 | 9.29 | 16K40 | 100 | 140 | 105 | 4×Φ19 | 8.8 |
Note: The description may be different with the product, please contact us for quotation.
