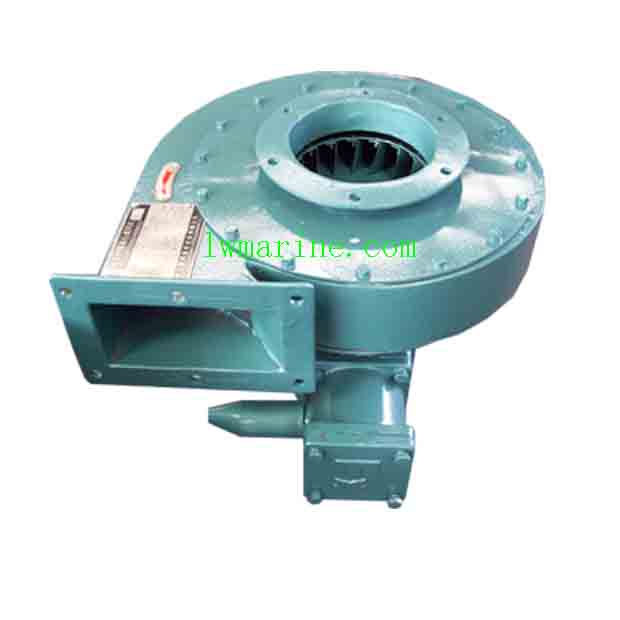

CBL-20 Explosion Proof Marine Axial Fan | Compact & Corrosion-Resistant Blower for Hazardous Areas
Product Overview
The CBL-20 is a certified explosion proof marine axial fan engineered for high safety and reliability in demanding shipboard environments. Designed to operate safely in the presence of flammable gases or dust, this compact and lightweight fan delivers efficient ventilation with low noise levels. Its superior anti-corrosive construction and robust design provide exceptional resistance to vibration, shock, and harsh marine conditions, making it ideal for hazardous and exposed areas on vessels.
Key Features
-
Certified Explosion-Proof Safety: Designed for safe and reliable operation in potentially explosive atmospheres, ensuring compliance with international marine and electrical safety standards.
-
Compact, Lightweight & Low Noise: Space-saving design with reduced weight and optimized acoustic performance for comfortable use in confined marine spaces.
-
Excellent Corrosion Resistance: Constructed with marine-grade materials and protective coatings to withstand saltwater, humidity, and chemical exposure.
-
High Vibration & Shock Resistance: Engineered to maintain performance under dynamic sea conditions, including rolling, pitching, and mechanical impact.
-
Dual Frequency Operation: Compatible with both 50Hz and 60Hz power systems for global vessel applications.
-
Multiple Motor Options: Available with different motor types and power configurations (Type I/Type II) to match specific operational requirements.
Protection Class
The fan meets GB4942.1 and IEC 34-5 standards for protection against:
-
Electric shock hazards
-
Contact with rotating parts
-
ingress of solid objects, water, and oils
Technical Specifications
| Model | Flow Rate (m³/h) | Total Pressure (Pa) | Static Pressure (Pa) | Speed (r/min) | Frequency (Hz) | Power (kW) | Motor Type |
|---|---|---|---|---|---|---|---|
| CBL-20 | 800 | 245 | 195 | 1460 | 50 | 0.75/1.1 | YB802-4H/YB90S-4H/Y90S-4H |
| 960 | 350 | 285 | 1750 | 60 | |||
| 1500 | 1050 | 880 | 2920 | 50 | 2.2/3 | YB90L-2H/YB100L-2H/Y100L-2H | |
| 2000 | 1030 | 735 | |||||
| 1800 | 1510 | 1265 | 3500 | 60 | |||
| 2400 | 1480 | 1060 |
The description/sizes may be different with goods, please check with us when order.
