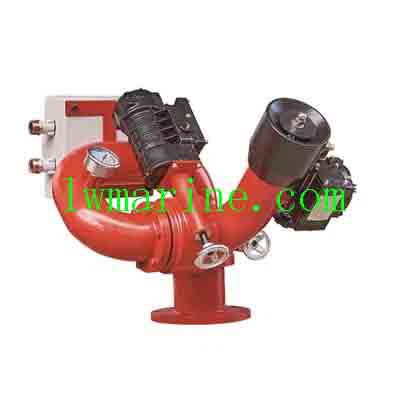

Explosion Proof Fire Monitor

Explosion Proof Fire Monitor | Hazardous Environment Fire Suppression System

Overview:
Designed for extreme environments, our explosion proof fire monitor is a safety-certified upgrade from standard monitors, engineered to operate reliably in flammable and explosive conditions. Its housing is specially constructed to meet stringent explosion-proof standards, ensuring maximum safety while combating fires in high-risk areas. Ideal for petrochemical plants, fuel tank farms, aircraft hangars, industrial warehouses, ports, fire trucks, and marine vessels, this robust monitor delivers superior performance where conventional equipment cannot operate safely.

Key Features:

Certified Explosion-Proof Design: Built to prevent ignition in hazardous atmospheres, with reinforced casing, flame-resistant coatings, and high-temperature seals.
Remote Operation & Flexible Control: Enables safe firefighting from a distance via explosion-proof motors and control systems.
High-Volume Flow Output: Delivers powerful water or foam streams to quickly suppress large-scale fires.
Compact & Durable Construction: Made with corrosion-resistant stainless steel or aluminum for longevity in harsh conditions.
Multi-Application Mounting: Compatible with fire trucks, trailers, fixed installations, and marine platforms.

Technical Specifications:

PSKD-Ex Series (Explosion-Proof Water Monitor)

Flow Range: 20–200 L/S
Jetting Distance: ≥48–110 m
Rated Pressure: 0.8–1.4 Mpa
Movement: Pitch: -70° to +70°, 360° rotation
Flange Connection: DN100 to DN200

PLKD-Ex Series (Explosion-Proof Foam/Water Monitor)

Flow Range (Water/Foam): 24–200 L/S | 40–105 m (foam jetting)
Foam Performance: Expansion ratio ≥6, 25% drainage time ≥2.5 min, 3–7% mixing ratio
Full Movement Capability: Wide pitching and rotation ranges for precision aiming

ZDMS-Ex Series (Automatic Explosion-Proof Fire Monitor)
