Heavy-Duty Engine Room Inclined Ladders – Marine-Grade Access Solutions
Product Overview

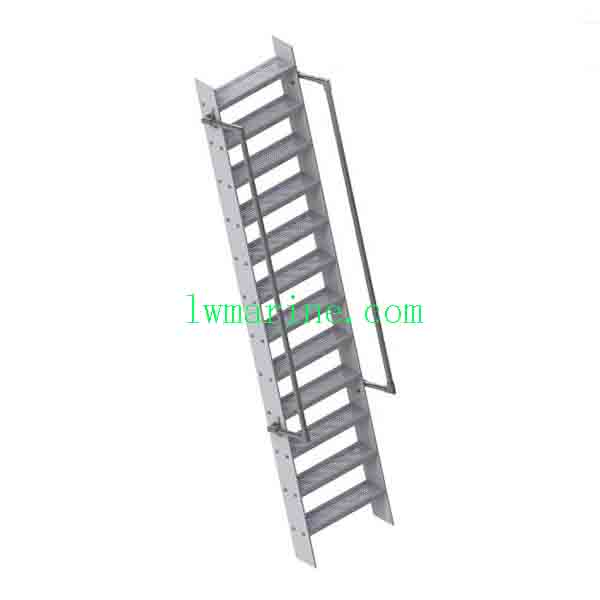

Our engine room inclined ladders are specifically designed for steel ship machinery spaces, providing safe and durable access with 55-65° slope options. These industrial-grade ladders are available in multiple configurations to meet both inland and sea-going vessel requirements.
Key Features & Benefits
✔ Dual-Environment Construction
-
Inland Waterway Version: L50×50×4/6mm frame
-
Ocean-Going Version: Heavy-duty L140×58×6/60×8mm frame
✔ Multiple Step Options
-
Square steel steps (Types A/D)
-
Expanded metal mesh (Types B/E)
-
Pressure-welded grating (Types C/F)
✔ Customizable Dimensions
-
Height range: 500-6500mm
-
Width options: 450/600/750mm
-
Slope angles: 55°/60°/65°
Technical Specifications
| Type | Frame Material | Step Type | Height (mm) | Angle (°) | Width (mm) |
|---|---|---|---|---|---|
| A | L50×50×4/6 | Square Steel | 500-2800 | 55/60/65 | 450/600/750 |
| B | L50×50×4/6 | Expanded Mesh | 500-2800 | 55/60/65 | 450/600/750 |
| C | L50×50×4/6 | Welded Grating | 500-2800 | 55/60/65 | 450/600/750 |
| D | L140×58/60×6/8 | Square Steel | 2900-6500 | 55/60/65 | 600/750 |
| E | L140×58/60×6/8 | Expanded Mesh | 2900-6500 | 55/60/65 | 600/750 |
| F | L140×58/60×6/8 | Welded Grating | 2900-6500 | 55/60/65 | 600/750 |
The description/sizes may be different with goods, please check with us when order.
