Electric Vertical Capstans – Space-Saving Marine Deck Equipment
Omnidirectional Line Handling with Electric Power

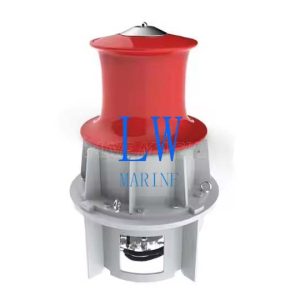

The Electric Vertical Capstans is a compact, electrically-driven deck machinery system designed for mooring, anchoring, and load handling operations. Its vertical orientation provides 360° line access while maintaining a minimal deck footprint, making it ideal for space-constrained vessels.
Technical Specifications
Core Components
✔ Vertical Drum Assembly
-
316L stainless steel contact surfaces
-
Grooved design for secure rope grip
-
Diameter: 350-650 mm
✔ Electric Drive System
-
Power range: 5-30 kW
-
IP56 protection rating
-
1/2/3-speed motor options

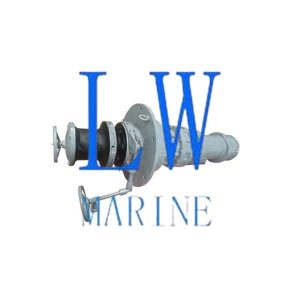

✔ Integrated Gearbox
-
Below-deck installation
-
Smooth torque transmission
-
Low maintenance design
Performance Data
| Parameter | Specification |
|---|---|
| Capacity Range | 15-50 kN |
| Line Speed | 5-18 m/min |
| Rope Diameter | 14-32 mm |
| Power Supply | 380V/440V 50/60Hz |
Certifications & Compliance
✔ BV, LR, IRS Certified
✔ SOLAS Safety Standards
✔ IMO Marine Equipment Directive
Parameters:
| Working Load(KN) | Wire Dia.(mm) | Mooring Speed (m/min) | Motor power (kw) |
| 5 | φ11 | ≥18 | 3/1.2 |
| 10 | φ11 | ≥18 | 4.3/1.7 |
| 15 | φ13 | ≥18 | 8.5/3.5 |
| 20 | φ15 | ≥18 | 11/11/7.5 |
| 30 | φ17.5 | ≥18 | 16/16/11 |
| 50 | φ20.5 | ≥18 | 16/16/11 |
| 70 | φ26 | ≥15 | 22/22/11 |
| 100 | φ28 | ≥15 | 45/45/30 |
| 120 | φ32.5 | ≥15 | 60/60/45 |
| 150 | φ36.5 | ≥15 | 60/60/45 |
| 200 | φ40 | ≥15 | 75/75/36 |
| 250 | φ46 | ≥12 | 75/75/36 |
The description/sizes may be different with goods, please check with us when order.
