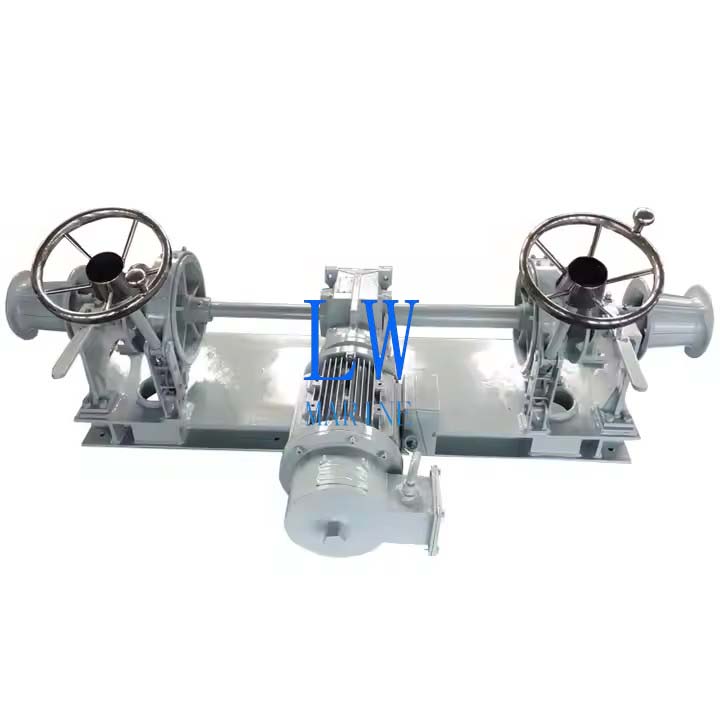

Electric Ship Windlass

Electric Ship Windlass

Application

The Electric Ship Windlass is an essential marine deck machine designed for safe and efficient anchor handling on vessels of all sizes.

Key Applications:
✔ Yachts & pleasure craft
✔ Fishing vessels
✔ Commercial ships
✔ Offshore support boats

Core Functionality:

• Electric motor-driven operation (3-100kW options)

• Smooth chain/rope handling (Ø10mm-120mm capacity)

• Flexible mounting: Deck or anchor locker installation

• Remote control capability for solo operation

---

Technical Specifications

Parameter	Specification
Chain/Rope Size	Ø10mm-120mm
Motor Power	3-100kW (400V/50Hz)
Control Voltage	24V DC/110V AC
Gear Type	Helical (oil-bath)
Brake System	Manual or hydraulic

---

Construction & Materials

Main Components:

• Frame: High-grade cast steel (ASTM A148)

• Gypsy/Drum: 316L stainless steel (PREN >25)

• Gears: Case-hardened alloy steel (HRC 58-62)

---

Advantages & Features

1. Robust Performance

   • Handles heavy anchor loads with ease

   • Continuous duty rating for prolonged use

2. Operational Control

   • Waterproof local control (IP56)

   • Optional wireless remote (100m range)

3. Maintenance Optimized

   • Centralized lubrication system

   • Quick-access service points

4. Safety Systems

   • Fail-safe brake mechanism

   • Overload protection switch

5. Certifications

   • IRS, RINA, BV, DNV, ABS

   • SOLAS compliant

Parameters:

Chain Dia.	Working Speed	Motor Power	Working Load	Supporting Load
mm	m/min	kW	KN	KN
50/52/54	≥9	45	106.3/114.9/132.9	617/664/713
56/58/60	≥9	55	133.2/143.0/153.0	764/816/870
62/64	≥9	55	163.4/174.1	925/982
66/68	≥9	75	185.1/196.5	1040/1098
70/73	≥9	75	208.3/226.5	1160/1254
76/78	≥9	90	245.5/258.6	1350/1416
81/84	≥9	110	311.7/335.2	2171/2320
87/90	≥9	120	359.5/384.8	2473/2629
92/95	≥9	130	446.9/475.0	2995/3162

The description/sizes may be different with goods, please check with us when order.
