Electric Powered Marine Boiler | High-Efficiency Steam Generation System for Vessels
Product Overview

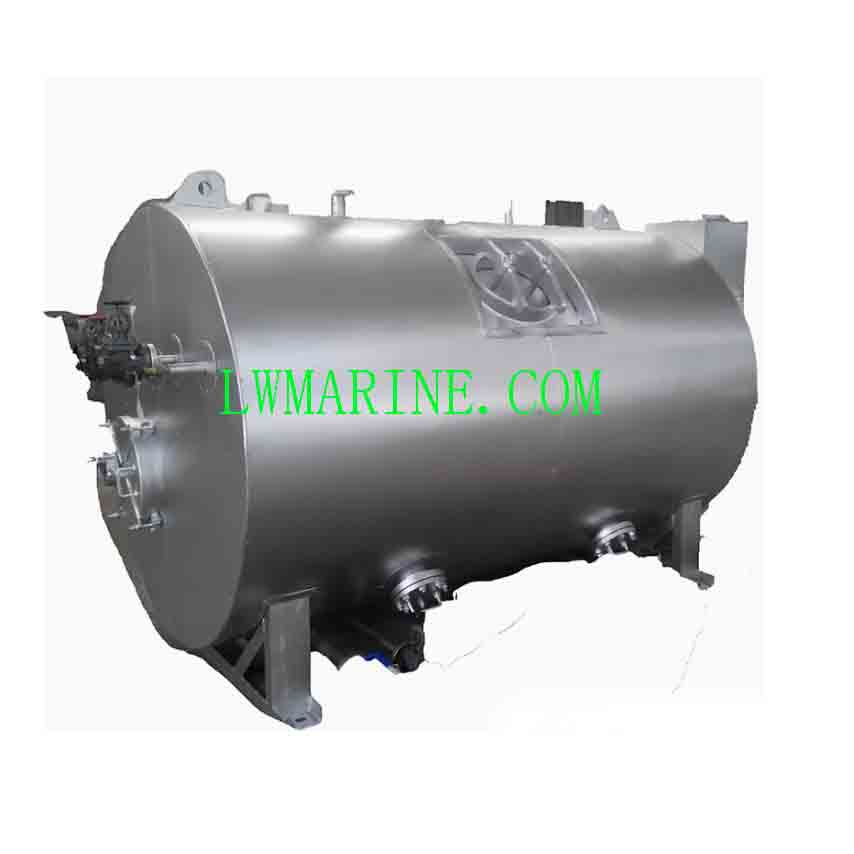

Our electric marine boiler is a advanced, self-contained steam generation system designed for modern maritime applications. Utilizing electric heating technology, this closed-vessel system efficiently heats water to produce steam or superheated vapor under precise pressure control, providing reliable thermal energy for vessel operations without combustion emissions. Ideal for ships requiring clean, efficient, and compliant steam solutions.
Key Features & Benefits
-
Zero Emissions Operation: Electric heating eliminates combustion pollutants, supporting environmental compliance and port regulations
-
High Energy Efficiency: Achieves up to 92% design efficiency with precise temperature and pressure control
-
Compact & Integrated Design: Self-contained unit saves space and simplifies installation in engine rooms
-
Multi-Application Steam Supply: Supports main engine pre-heating, fuel oil viscosity control, freshwater generation, and sanitation
-
IMO & SOLAS Compliance: Meets international marine safety and environmental standards
Primary Applications
-
Heating main diesel propulsion engines and bunker fuel oil tanks
-
Viscosity reduction for heavy fuel oil (HFO) transfer and ignition
-
Steam supply for freshwater generators (evaporators)
-
Accommodation heating and hot water systems
-
Deck machinery and cargo tank cleaning
Technical Specifications
-
Rated Evaporation: 2.0 t/h
-
Rated Steam Pressure: 1.0 MPa
-
Rated Steam Temperature: 184°C
-
Feed Water Temperature: 20°C
-
Heated Surface Area: 62 m²
-
Design Efficiency: 92%
-
Power Options: Compatible with vessel electrical systems (AC/DC configurations available)
-
Dimensions: 4.5 × 2.2 × 2.15 m (L×W×H)
-
Weight: 8.6 tons
Customization Options
All technical parameters can be tailored to specific vessel requirements, including capacity, pressure rating, voltage input, and control system integration.
The description/sizes may be different with goods, please check with us when order.
