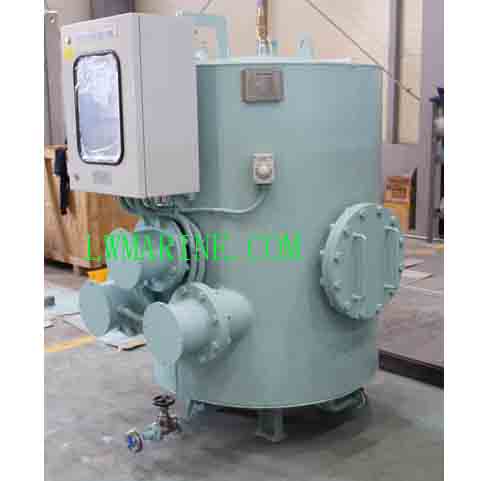

DRG Series Marine Electric Heating Hot Water Tank: Efficient & Reliable Onboard Hot Water Solution
The DRG Series Marine Electric Heating Hot Water Tank is a premium-quality, high-efficiency solution designed specifically for heating fresh water on ships and offshore platforms. This electric hot water tank ensures a continuous supply of hot water for crew use, enhancing comfort and convenience during voyages. It seamlessly integrates with the fresh water pressure tank on board, utilizing fresh water to replenish the hot water tank’s stock, which is then heated electrically for use throughout the vessel.
Key Features & Benefits:
- Efficient Electric Heating: The DRG Series employs advanced electric heating technology to rapidly heat water, ensuring a consistent and reliable hot water supply.
- Versatile Capacity Options: Available in multiple capacities (0.12M³ to 1.0M³), catering to the diverse hot water needs of different vessel sizes.
- Robust Safety Measures: Features a safety valve with an open pressure of 0.42 Mpa, ensuring safe operation under varying conditions.
- Thermal Insulation: The 40mm thick insulation layer, covered with a 0.7mm galvanized steel sheet, minimizes heat loss and enhances energy efficiency.
- Flexible Power Supply: Compatible with both AC380V, 50HZ, 3-phase and AC440V, 60HZ, 3-phase power supplies, making it suitable for international voyages.
Technical Specifications:
Type: DRG Series
Capacity (M³): 0.12, 0.2, 0.3, 0.5, 1.0
Working Pressure (Mpa): 0.4
Design Pressure (Mpa): 0.44
Test Pressure (Mpa): 0.66
Safety Valve Open Pressure (Mpa): 0.42
Water Inlet Temperature (℃): 15
Water Outlet Temperature (℃): 65
Hot Water Capacity (kg/h): 180, 360, 540, 720, 900
Electric Heating Power (KW): 12, 24, 36, 48, 60
Insulation Layer Thickness (mm): 40
Outsourcing Galvanized Steel Sheet Thickness (mm): 0.7
Power Supply: AC380V, 50HZ, 3-phase or AC440V, 60HZ, 3-phase
Weight (kg): 198, 243, 299, 308, 513
Additional Dimensions:
- DN: 400, 500, 600, 700, 900
- A: 608, 708, 808, 908, 1108
- B: 688, 790, 911, 824, 1072
- H: 1241, 1335, 1417, 1773, 2090
- d1: DN25, DN32, DN40
- d2: 3/4″, 1″
- b: 393, 445, 516, 469, 617
- h1: 271, 266, 321, 440, 533
- h2: 540, 580, 630, /, /
- C: 320, 330, 370, 490, 630
FAQs:
Q1: How does the DRG Series hot water tank ensure a continuous hot water supply?
A1: The DRG Series hot water tank integrates with the fresh water pressure tank on board, using fresh water to replenish its stock. The water is then heated electrically, ensuring a continuous and reliable hot water supply.
Q2: What safety features are included in the DRG Series hot water tank?
A2: The DRG Series hot water tank includes a safety valve with an open pressure of 0.42 Mpa, which activates to prevent overpressure situations, ensuring safe operation.
Q3: Can the DRG Series hot water tank be used with different power supplies?
A3: Yes, the DRG Series hot water tank is compatible with both AC380V, 50HZ, 3-phase and AC440V, 60HZ, 3-phase power supplies, making it suitable for international voyages.
Q4: What are the available capacities for the DRG Series hot water tank?
A4: The DRG Series hot water tank is available in multiple capacities, ranging from 0.12M³ to 1.0M³, catering to the diverse hot water needs of different vessel sizes.
Q5: How does the thermal insulation of the DRG Series hot water tank enhance energy efficiency?
A5: The DRG Series hot water tank features a 40mm thick insulation layer covered with a 0.7mm galvanized steel sheet, which minimizes heat loss and enhances energy efficiency, reducing operational costs.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
