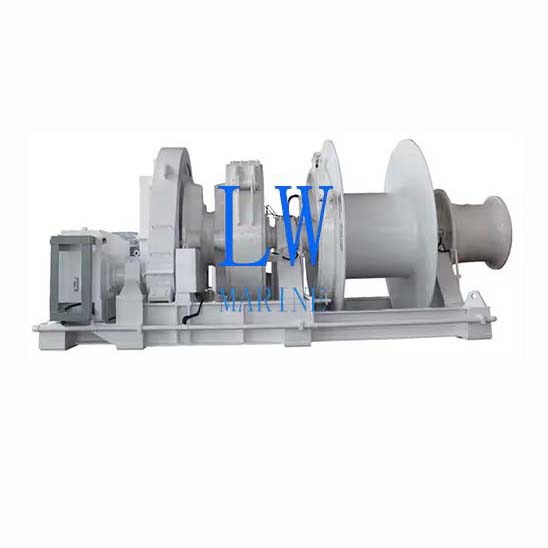

Electric Combined Windlasses – Dual-Function Marine Solution
Product Overview
The Electric Combined Windlasses integrates anchor handling and mooring operations into a single, space-saving unit. Designed for small to medium-sized vessels, this electrically-driven system combines reliable anchoring power with versatile mooring capabilities, making it an essential deck machine for boats requiring frequent anchoring operations.
Key Applications
-
Fishing Vessels – Secure anchoring and efficient mooring in coastal waters
-
Workboats & Patrol Craft – Dual-functionality for varied marine operations
-
Pleasure Craft & Yachts – Compact solution for private vessel owners
-
Harbor Utility Boats – Daily anchoring and berthing maneuvers
Technical Specifications
Core Components
✔ Electric Drive System – Clean, efficient operation with precise speed control
✔ Integrated Gypsy Wheel – Single-chain wheel design for anchor handling
✔ Warping Head – Dedicated mooring line management
Performance Features
-
Dual-Function Operation – Handles both anchoring and mooring tasks
-
Manual Control System – Brake and clutch for direct operator management
-
Marine-Grade Construction – Aluminum, stainless steel, and carbon steel components
-
User-Friendly Design – Simplified installation and maintenance procedures
Control Options
-
Local Control Panel – Direct deck-level operation
-
Remote Control Capability – Wireless operation flexibility
Certifications & Compliance
✔ BV, LR, IRS certified – Meets international marine equipment standards
Parameters:
| Chain diameter | Overload pull | Drum pull | Nominal speed | Speed | Rated pull | Wire diameter | Drum capacity |
| mm | KN | KN | m/min | m/min | KN | mm | ≥m |
| 12.5 | 11.1 | 5 | 16 | 16 | 7.4 | 10 | 100 |
The description/sizes may be different with goods, please check with us when order.
