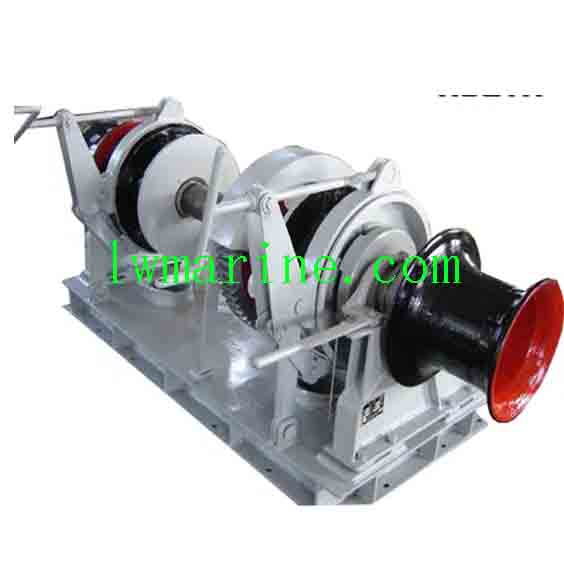

Electric Anchor Winch
The Electric Anchor Winch is a top-tier marine-grade winch, meticulously engineered to provide a secure and reliable anchoring solution for various types of vessels. This electric-powered winch ensures precise and effortless control over the deployment and retrieval of anchor chains or ropes, enabling ships to maintain a stable position in any challenging sea conditions. It is an indispensable piece of equipment for marine operations, offering both safety and efficiency.
Key Features
- High-Performance Electric Motor: Powers the winch for smooth and precise operation, ensuring reliable anchoring in all weather conditions.
- Single Drum Design: Equipped with a single drum for efficient handling of mooring wires, facilitating quick and secure anchoring.
- Cable Lifter: Includes a dedicated cable lifter for managing anchor chain cables, enhancing operational convenience.
- Warping End: Features a warping end for versatile warping duties, adding to the winch’s functionality.
- Local and Remote Control Options: Offers both local and remote control capabilities, allowing for flexible operation based on user preference and situational requirements.
- Customizable Design: Available in customized configurations to meet specific vessel requirements and anchoring needs.
- Classification Society Certification: Can be supplied with or without Classification society certificates, ensuring compliance with international marine standards.
Technical Parameters
| Chain Dia (mm) | Working Speed (m/min) | Mooring Pull (kN) | Mooring Speed (m/min) | Drum Capacity (m) | Working Load (kN) | Supporting Load (kN) | Motor Power (kW) |
|---|---|---|---|---|---|---|---|
| 14/16/17.5 | ≥9 | 8 | ≥12 | φ11*100 | 8.3/10.9/13.0 | 51/67/80 | 4.3/1.7 |
| 19/20.5/22 | ≥9 | 15 | ≥12 | φ13*120 | 15.3/17.9/20.6 | 95/110/126 | 8.5/3.5 |
| 24/26 | ≥9 | 20 | ≥12 | φ15*120 | 24.5/28.7 | 149/175 | – |
| 28/30 | ≥9 | 30 | ≥12 | φ18*150 | 33.3/38.3 | 202/231 | 11/11/7.5 |
| 32/34/36 | ≥9 | 40 | ≥12 | φ20.5*150 | 43.5/49.1/55.1 | 261/294/329 | 16/16/11 |
| 38/40/42 | ≥9 | 50 | ≥12 | φ20.5*150 | 61.4/68.0/75.0 | 365/402/442 | 22/22/16 |
| 44/46/48 | ≥9 | 60 | ≥12 | φ26*200 | 82.3/89.9/97.9 | 483/526/570 | 30/30/22 |
Additional Technical Specifications (Combined Windlass and Mooring Winch)
| Type | Chain Diam (mm) | Working Load AM2 (kN) | Working Load AM3 (kN) | Over Loading AM2 (kN) | Over Loading AM3 (kN) | Nominal Speed (m/min) | Drum Load (kN) | Nominal Mooring Speed (m/min) | Cable Capacity (m) | Mooring Line Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| DMB-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 9 | 80 | 10 | Ф11×100 | 8 |
| DMB-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 9 | 95 | 15 | Ф13×100 | 10 |
| DMB-20 | 20 | 17.9 | 20 | 26.9 | 30 | 9 | 110 | 20 | Ф13×100 | 10 |
| DMB-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 9 | 126 | 20 | Ф15×100 | 15 |
| DMB-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 9 | 149 | 20 | Ф15×100 | 20 |
| DMB-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 9 | 175 | 20 | Ф22×100 | 20 |
| DMB-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 9 | 202 | 20 | Ф22×120 | 20 |
| DMB-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 9 | 231 | 30 | Ф22×120 | 30 |
| DMB-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 9 | 261 | 30 | Ф20×120 | 30 |
| DMB-34 | 34 | 49.1 | 54.9 | 73.3 | 82.4 | 9 | 294 | 40 | Ф20×120 | 30 |
| DMB-36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 9 | 329 | 30 | Ф20×120 | 30 |
| DMB-38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 9 | 365 | 40 | Ф22×150 | 40 |
| DMB-40 | 40 | 68 | 76 | 102 | 114 | 9 | 402 | 40 | Ф22×150 | 40 |
| DMB-42 | 42 | 75 | 83.8 | 112.5 | 125.7 | 9 | 442 | 40 | Ф22×150 | 50 |
| DMB-44 | 44 | 82.3 | 92 | 123.5 | 138 | 9 | 483 | 50 | Ф26×200 | 50 |
| DMB-46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 9 | 526 | 50 | Ф26×200 | 50 |
| DMB-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 9 | 570 | 60 | Ф26×200 | 50 |
| DMB-50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 9 | 617 | 80 | Ф26×200 | 50 |
FAQs
Q1: Why is the electric motor placed in that particular position on the Electric Anchor Winch?
A1: The electric motor is strategically placed to save longitudinal space on the vessel, ensuring optimal utilization of available area without compromising functionality.
Q2: Can the motor arrangement pattern be customized according to specific vessel requirements?
A2: Yes, the motor arrangement can be customized to suit various vessel configurations and anchoring needs. We offer a range of arrangement options, all of which are standard products in our portfolio.
Q3: What are the benefits of using an electric-powered anchor winch over a manual or hydraulic one?
A3: An electric-powered anchor winch offers several advantages, including precise control, ease of operation, reduced physical effort, and the ability to integrate with remote control systems for enhanced safety and convenience.
Q4: How does the Electric Anchor Winch ensure reliable anchoring in challenging sea conditions?
A4: The Electric Anchor Winch is designed with a high-performance electric motor and robust construction, enabling it to withstand harsh marine environments and maintain a secure anchor position even in rough seas.
Q5: Can the Electric Anchor Winch be integrated with existing vessel systems for seamless operation?
A5: Yes, the Electric Anchor Winch is designed for easy integration with existing vessel systems, ensuring seamless operation and compatibility with various control and monitoring setups.
