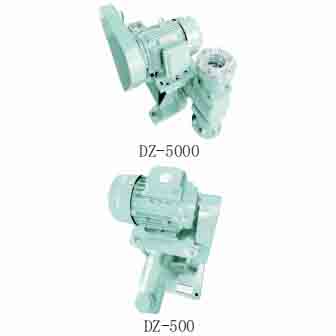

DZ SERIES MARINE ELECTRICAL PISTON PUMP
General Description
The DZ series marine electric piston pump is a horizontal single-cylinder electric piston pump. It is suitable for pumping liquids such as oily water, bilge water, seawater, and fresh water that contain no hard particles or fibrous impurities and do not exceed 85°C in temperature.
The DZ series marine electric piston pump was designed by the Shanghai Marine Equipment Research Institute and manufactured by Taizhou Tiantaihan Water Pump Factory. The design and manufacture of this product comply with the CB/T3160 standard for marine electric piston oily water pumps. The product is certified by the China Classification Society (CCS).
The DZ series marine electric piston pump is particularly suitable for use with oily water treatment systems. It helps reduce the degree of oil-water emulsification during the pumping process, improves separation efficiency, and ensures safe, reliable operation, straightforward control, simple maintenance, precise manufacturing, long service life, and high economic value.
Example: DZ-500.
Model Code Interpretation:
-
D: Motor Drive
-
Z: Piston Pump
-
-500: Rated Flow: 500L/h
Main Technical Performance Parameter
| Model | Flow (m³/h) | Discharge Pressure (MPa) | Motor Power (KW) | Inlet and Outlet Pipe Diameter (mm) | Maximum Suction (m) | Head (m) | Port Type |
|---|---|---|---|---|---|---|---|
| DZ-100 | 0.1 | 0.2 | 0.12 | 20 | 6 | 26 | Pipe Connection |
| DZ-250 | 0.25 | 0.3 | 0.18 | 25 | 6 | 36 | Pipe Connection |
| DZ-500 | 0.5 | 0.3 | 0.25 | 25 | 6 | 36 | Pipe Connection |
| DZ-1000 | 1 | 0.3 | 0.37 | 40 | 6 | 36 | Pipe Connection |
| DZ-2000 | 2 | 0.3 | 0.75 | 40 | 6 | 36 | Flanged |
| DZ-3000 | 3 | 0.3 | 1.1 | 50 | 6 | 36 | Flanged |
| DZ-5000 | 5 | 0.3 | 1.5 | 65 | 6 | 36 | Flanged |
Note: The description may be different with the product, please contact us for quotation.
