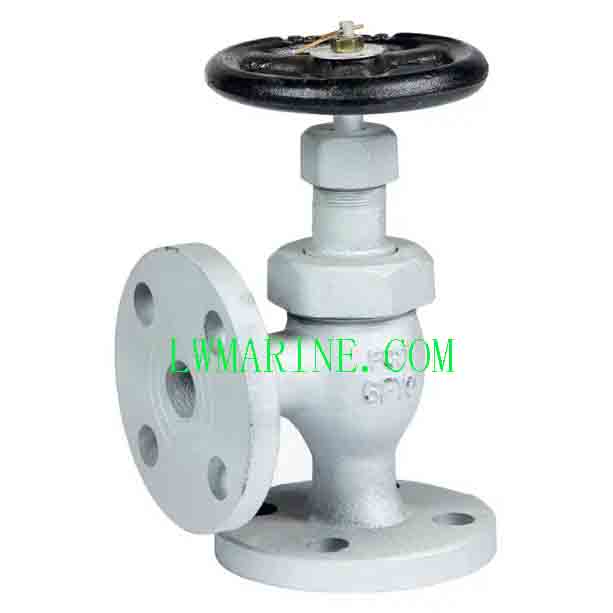

JIS F7324 Marine Ductile Iron Angle Valve | 16K Marine-Grade Angle Stop Valve for Harsh Marine Environments
Product Overview
The JIS F7324 Marine Ductile Iron Angle Valve is a high-performance flow control solution engineered for demanding shipbuilding, marine engineering, and offshore applications. Manufactured in full compliance with Japanese Industrial Standards, this durable angle valve excels in handling seawater, fuel oil, lubricants, and other critical fluids in the most challenging marine conditions. Its robust ductile iron construction combined with corrosion-resistant trim materials ensures long-term reliability and safety in marine systems.
Key Features & Benefits
-
JIS F7324 Certified: Fully compliant with Japanese Industrial Standards for marine valves
-
Marine Classification Society Approved: Meets requirements of major marine regulatory bodies
-
Ductile Iron Construction: Offers superior tensile strength, impact resistance, and durability in corrosive environments
-
16K High Pressure Rating: Suitable for high-pressure marine applications
-
Angle Pattern Design: Saves space, reduces piping connections, and simplifies maintenance
-
Leak-Proof Sealing System: Ensures bubble-tight closure even under high-pressure conditions
-
Corrosion-Resistant Trim Options: Stainless steel (SUS) or bronze disc and stem materials
-
Threaded Connections: Easy installation and compatibility with various piping systems
-
Smooth Operation: Ergonomically designed handle for easy manual operation
-
Wide Application Range: Ideal for cooling systems, fuel transfer, firefighting, and more
Material Specification
-
Body: Ductile Iron (Nodular Cast Iron)
-
Disc: Stainless Steel (SUS) / Bronze
-
Stem: Stainless Steel (SUS) / Brass
Technical Specifications
-
Standard: JIS F7324
-
Nominal Diameter: DN15-DN40
-
Pressure Rating: 16K
-
Connection Type: Threaded
-
Valve Type: Angle Stop Valve
-
Operation: Manual
Main Dimensions (mm)
| IMPA Code | Model | L | D | C | Bolt Holes |
|---|---|---|---|---|---|
| 750331 | 7324 16K15 | 70 | 95 | 70 | 4×φ15 |
| 750332 | 7324 16K20 | 75 | 100 | 75 | 4×φ15 |
| 750333 | 7324 16K25 | 85 | 125 | 90 | 4×φ19 |
| 750334 | 7324 16K32 | 95 | 135 | 100 | 4×φ15 |
| 750335 | 7324 16K40 | 100 | 140 | 105 | 4×φ19 |
The description/sizes may be different with goods, please check with us when order.
