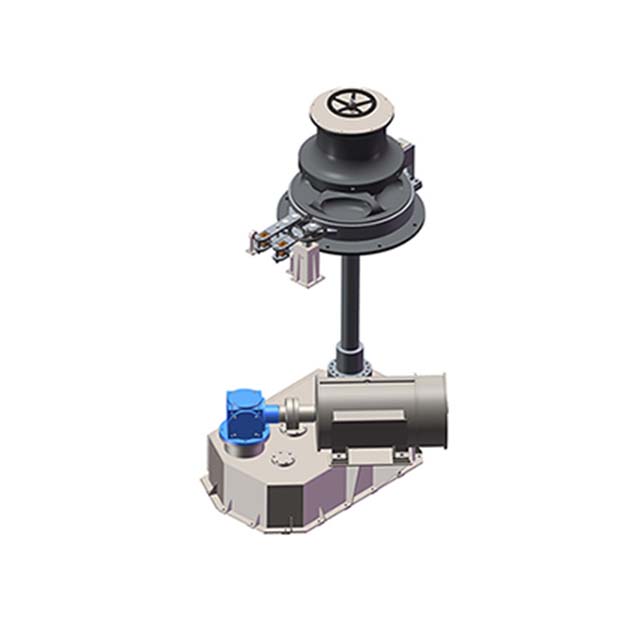

Drop Down Electric Anchor Mooring Rope Capstan for Marine Applications
Our Drop Down Electric Anchor Mooring Rope Capstan, with a robust capacity ranging from 15.3 to 82.3 KN, is expertly designed for anchoring and mooring operations on ships and law enforcement boats. This marine-grade capstan features a wear-resistant marine cable drum, a reliable marine worm gear reducer, a marine brake control motor, and an IP56-rated main electric control box and controller, ensuring optimal performance and durability in harsh marine environments.
Key Features & Long-Tail Keywords:
- Marine Electric Anchor Capstan: Specifically engineered for marine applications, providing secure anchoring and mooring solutions.
- Wear-Resistant Marine Cable Drum: Designed to withstand the rigors of marine use, ensuring long-lasting performance.
- Marine Worm Gear Reducer: Offers smooth and efficient operation, reducing wear and tear on the capstan.
- IP56-Rated Electric Control Box: Protects against dust and water ingress, ensuring reliable performance in all weather conditions.
- High-Capacity Mooring Rope Capstan: Capable of handling working loads up to 82.3 KN, suitable for a wide range of marine vessels.
Additional Long-Tail Keywords:
- Drop down electric capstan for ships
- Marine-grade anchor mooring capstan
- Wear-resistant cable drum capstan
- IP56 electric control capstan
- High-capacity marine mooring equipment
Technical Specifications:
| Chain Dia. (mm) | Working Load (KN) | Working Speed (m/min) | Warping Load (KN) | Warping Speed (m/min) | Wire Dia. (mm) | Motor Power (KW) – Electric/Hydraulic |
|---|---|---|---|---|---|---|
| 19 | 15.3 | ≥12 | 10 | ≥10 | φ13 | 6/2.5 |
| 22 | 20.6 | ≥12 | 10 | ≥10 | φ13 | 6/2.5 |
| 24 | 24.5 | ≥9 | 20 | ≥10 | φ15 | 7.5/7.5/5 |
| 26 | 28.7 | ≥9 | 20 | ≥10 | φ15 | 7.5/7.5/5 |
| 28 | 33.3 | ≥9 | 30 | ≥8.5 | φ15 | 16/16/11 |
| 30 | 38.3 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 |
| 32 | 43.5 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 |
| 34 | 49.1 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 |
| 36 | 55.1 | ≥9 | 30 | ≥8.5 | φ17.5 | 16/16/11 |
| 38 | 62.4 | ≥9 | 150 | ≥8.5 | φ20.5 | 22/22/16 |
| 40 | 68 | ≥9 | 150 | ≥8.5 | φ20.5 | 22/22/16 |
| 42 | 75 | ≥9 | 50 | ≥8 | φ20.5 | 22/22/16 |
| 44 | 82.3 | ≥9 | 50 | ≥8 | φ20.5 | 30/30/22 |
FAQs:
Q1: What is the maximum working load capacity of this electric anchor mooring rope capstan?
A1: The maximum working load capacity ranges from 15.3 KN to 82.3 KN, depending on the chain diameter selected, making it suitable for a wide range of marine anchoring and mooring needs.
Q2: How does the wear-resistant marine cable drum enhance the capstan’s performance?
A2: The wear-resistant marine cable drum is designed to withstand the harsh conditions of marine use, reducing wear and tear on the cable and ensuring long-lasting, reliable performance.
Q3: Is the electric control box waterproof?
A3: Yes, the main electric control box is rated IP56, providing protection against dust and water ingress, ensuring reliable operation in all weather conditions.
Q4: Can this capstan be used on both ships and law enforcement boats?
A4: Absolutely, our Drop Down Electric Anchor Mooring Rope Capstan is specifically engineered for marine applications, making it suitable for use on a variety of marine vessels, including ships and law enforcement boats.
Q5: What are the advantages of using a marine worm gear reducer in this capstan?
A5: The marine worm gear reducer offers smooth and efficient operation, reducing friction and wear on the capstan components, which in turn extends the lifespan of the equipment and ensures consistent performance.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
