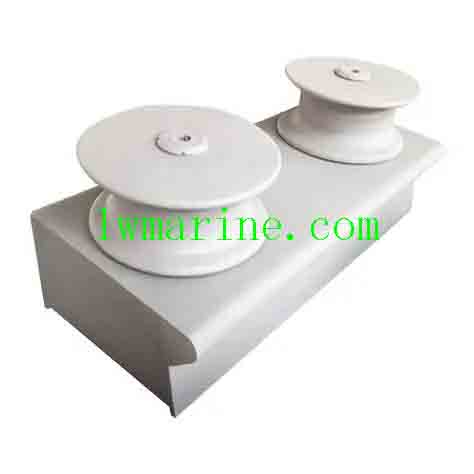

Double Roller Fairlead – Customizable Marine Mooring Rope Guide
Introducing our high-quality Double Roller Fairlead, a versatile and reliable device specifically engineered to guide mooring ropes with precision and efficiency. This fairlead comes in a variety of configurations, including open-type fairlead rollers, closed-type fairlead rollers, single roller, double fairlead roller, and three fairlead roller options, each designed to meet specific mooring needs.
Key Features & Long-Tail Keywords:
- Versatile Roller Configurations: Available in multiple types such as open-type, closed-type, single, double, and triple fairlead rollers, providing flexibility for various marine mooring applications.
- Durable Material Options: Constructed from either cast steel or cast iron, ensuring long-lasting performance and resistance to wear and tear in harsh marine environments.
- Customizable Roller Quantity: The number of rollers can be adjusted based on customer requirements, allowing for tailored solutions that fit specific mooring scenarios.
- Adherence to Industry Standards: Complies with standards GB/T10105-88/CB*58-83 and JIS F 2014-1987, ensuring reliability and compatibility with existing mooring systems.
- Certified Quality Assurance: Comes with certificates from reputable organizations such as CCS, ABS, BV, LR, NK, and RINA, guaranteeing high-quality standards.
- Custom Diameter Specifications: Roller diameters can be customized according to customer needs, accommodating a wide range of rope types and sizes.
Specification:
- Model Type: Double Fairlead Roller
- Material: Cast Steel/ Cast Iron
- Standard: GB/T10105-88/CB*58-83, JIS F 2014-1987
- Roller No.: 2 Rollers (customizable)
- Diameters: Customizable based on customer requirements
- Certificate: CCS, ABS, BV, LR, NK, RINA
Drawing Specifications: Double Fairlead Roller (Unit: mm)
| Wire Rope (6×24) | Wire Rope (6×30) | Wire Rope (6×37) | Hemp Rope | Synthetic Fiber Rope | D (mm) | A (mm) | L (mm) |
|---|---|---|---|---|---|---|---|
| 11 | 11 | 11 | 40 | 28 | 100 | 290 | 530 |
| 17 | 17.5 | 15 | 45 | 32 | 150 | 420 | 740 |
| 22.5 | 21.5 | 19.5 | 55 | 40 | 200 | 530 | 930 |
| 24 | 26 | 24 | 65 | 45 | 250 | 640 | 1100 |
| 30 | 32.5 | 28 | 70 | 50 | 300 | 750 | 1270 |
| 37.5 | 39 | 34.5 | 75 | 55 | 350 | 860 | 1440 |
| 41 | 39 | 39 | 85 | 65 | 400 | 970 | 1610 |
| 44.5 | 47.5 | 43 | 85 | 80 | 450 | 1080 | 1800 |
FAQs:
Q1: What types of fairlead rollers are available?
A1: Our Double Roller Fairlead comes in various configurations, including open-type, closed-type, single, double, and triple fairlead rollers, allowing you to choose the best option for your specific mooring needs.
Q2: What materials are used to construct the fairlead rollers?
A2: The fairlead rollers are made from either cast steel or cast iron, ensuring durability and resistance to wear and tear in harsh marine environments.
Q3: Can the number of rollers be customized?
A3: Yes, the number of rollers can be adjusted based on your specific requirements, providing a tailored solution for your mooring system.
Q4: What industry standards does the Double Roller Fairlead comply with?
A4: The fairlead adheres to industry standards GB/T10105-88/CB*58-83 and JIS F 2014-1987, ensuring reliability and compatibility with existing mooring systems.
Q5: What certifications does the Double Roller Fairlead have?
A5: The fairlead comes with certificates from reputable organizations such as CCS, ABS, BV, LR, NK, and RINA, guaranteeing high-quality standards and compliance with international regulations.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
