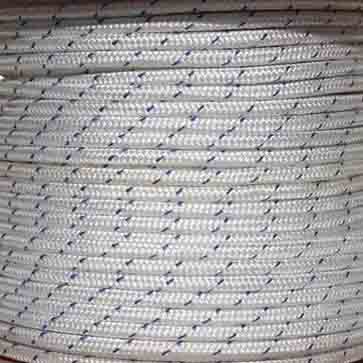

Double Ply Rope for Heavy-Duty Marine & Industrial Applications
Engineered for maximum performance and durability, our double ply rope collection is designed to meet the rigorous demands of commercial marine and industrial sectors. We offer a comprehensive range of high-strength synthetic ropes in various materials, including Polyamide (Nylon), Polypropylene (PP), and Polyester, each providing unique benefits for specific operational needs.
Technical Specifications: Double Ply Rope
| Diameter (mm) | Polyamide Filament | Polyamide | Polypropylene Filament | Polypropylene (PP) | Polyester | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| **Weight (Ktex) | Break Strength (daN)** | **Weight (Ktex) | Break Strength (daN)** | **Weight (Ktex) | Break Strength (daN)** | **Weight (Ktex) | Break Strength (daN)** | **Weight (Ktex) | Break Strength (daN)** | |
| 28 | 465 | 18,500 | 452 | 13,800 | 365 | 12,100 | 605 | 14,000 | 500 | 12,700 |
| 32 | 605 | 23,500 | 585 | 17,600 | 470 | 15,300 | 795 | 18,000 | 660 | 16,000 |
| 36 | 770 | 29,200 | 745 | 21,900 | 600 | 19,100 | 1,000 | 22,400 | 820 | 20,000 |
| 40 | 950 | 35,200 | 920 | 26,400 | 740 | 22,700 | 1,245 | 27,000 | 1,000 | 23,800 |
| 44 | 1,150 | 41,400 | 1,120 | 31,000 | 900 | 27,200 | 1,500 | 32,000 | 1,200 | 28,500 |
| 48 | 1,360 | 50,000 | 1,320 | 37,500 | 1,080 | 32,500 | 1,820 | 38,000 | 1,450 | 34,200 |
| 52 | 1,590 | 58,500 | 1,550 | 44,000 | 1,270 | 38,000 | 2,130 | 45,500 | 1,680 | 40,000 |
| 56 | 1,850 | 65,600 | 1,800 | 49,000 | 1,480 | 43,000 | 2,470 | 51,000 | 1,960 | 45,400 |
| 60 | 2,120 | 75,600 | 2,060 | 56,500 | 1,700 | 49,400 | 2,830 | 57,000 | 2,270 | 51,000 |
| 64 | 2,420 | 85,800 | 2,350 | 63,500 | 1,920 | 55,500 | 3,230 | 66,500 | 2,550 | 58,000 |
| 72 | 3,060 | 110,000 | 2,970 | 79,000 | 2,430 | 69,500 | 4,080 | 81,500 | 3,270 | 73,000 |
| 80 | 3,780 | 128,000 | 3,670 | 93,800 | 3,010 | 83,000 | 4,950 | 98,000 | 4,000 | 87,200 |
| 88 | 4,580 | 151,000 | 4,440 | 113,000 | 3,650 | 97,800 | 5,980 | 120,000 | 4,820 | 108,000 |
| 96 | 5,450 | 178,000 | 5,290 | 134,000 | 4,250 | 116,000 | 7,130 | 144,000 | 5,910 | 138,000 |
| 104 | 6,390 | 207,000 | 6,200 | 155,000 | 5,000 | 135,000 | 8,360 | 165,000 | 6,920 | 156,000 |
| 112 | 7,410 | 239,000 | 7,180 | 180,000 | 5,820 | 157,000 | 9,690 | 191,000 | 7,950 | 182,000 |
| 120 | 8,510 | 274,000 | 8,260 | 206,000 | 6,630 | 180,000 | 11,100 | 218,000 | 9,100 | 206,000 |
| 136 | 10,900 | 350,000 | 10,600 | 265,000 | 8,570 | 230,000 | 14,300 | 280,000 | 11,800 | 260,000 |
The description/sizes may be different with goods, please check with us when order.
