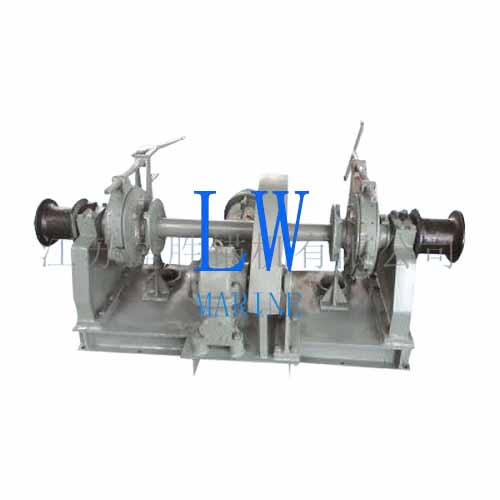

Electric Double Chain Drum Windlass – Technical Specifications
Key Features & Performance
-
Retrieval Speed Range: 9–20 m/min (adjustable for operational requirements)
-
Chain Compatibility: Accommodates anchor chains from Ø12.5mm to Ø114mm (½” to 4½”)
-
Drive System: High-torque electric motor (standard voltage options: 380V / 440V / 220V)

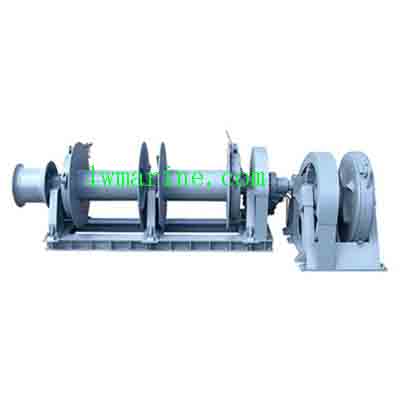

Double Chain Drum Windlass
Parameters:
| Chain Diameter(mm) | Holding Load(KN AM2) | Rated Load(KN AM2) | Overload (KN AM2) | Power (KW) |
| 12.5 | 41.4 | 6.6 | 9.9 | 2.4/1.5 |
| 14 | 52.2 | 8.3 | 12.5 | 3.3/2.2 |
| 16 | 67.5 | 10.9 | 16.4 | 3.3/2.2 |
| 17.5 | 80.5 | 13 | 19.5 | 4.3/1.7 |
| 19 | 94.9 | 15.3 | 23 | 6/2.5 |
| 20.5 | 109.8 | 17.9 | 26.9 | 6/2.5 |
| 22 | 126 | 20.6 | 30.9 | 6/2.5 |
| 24 | 145 | 24.5 | 36.8 | 8.5/3.5 |
| 26 | 175 | 28.7 | 43 | 8.5/3.5 |
| 28 | 202 | 33.3 | 49.9 | 11/11/7.5 |
| 30 | 231 | 38.3 | 57.5 | 11/11/7.5 |
| 32 | 262 | 43.5 | 65.3 | 12/3.5 |
| 34 | 295 | 49.1 | 73.6 | 16/16/11 |
| 36 | 329 | 55.1 | 82.6 | 5月18日 |
| 38 | 365 | 61.3 | 91.9 | 22/22/16 |
| 40 | 403 | 68 | 102 | 22/22/16 |
| 42 | 442 | 74.5 | 111.7 | 22/22/16 |
| 44 | 486 | 82.3 | 123.5 | 30/30/22 |
| 46 | 527 | 89.9 | 134.9 | 30/30/22 |
The description/sizes may be different with goods, please check with us when order.
